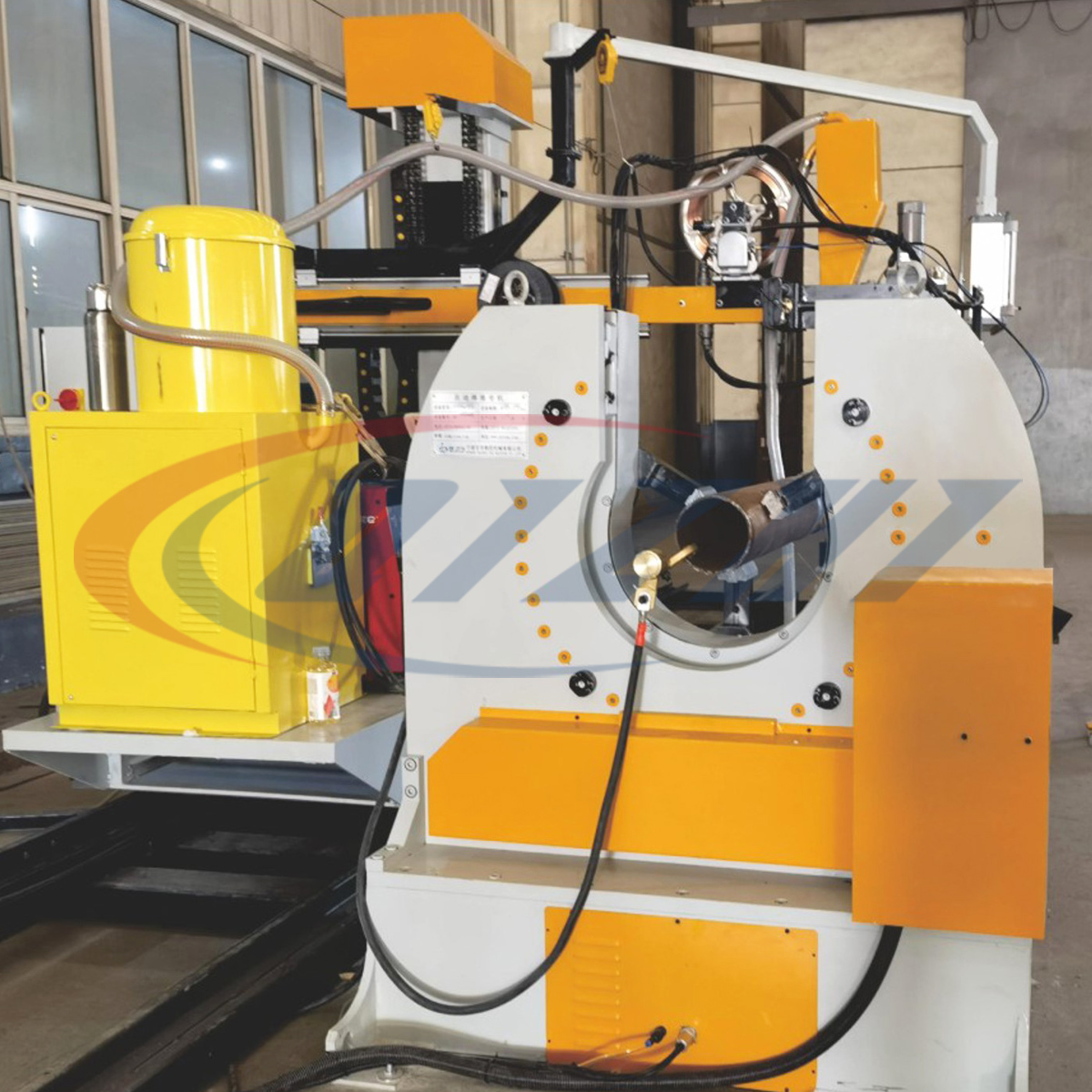

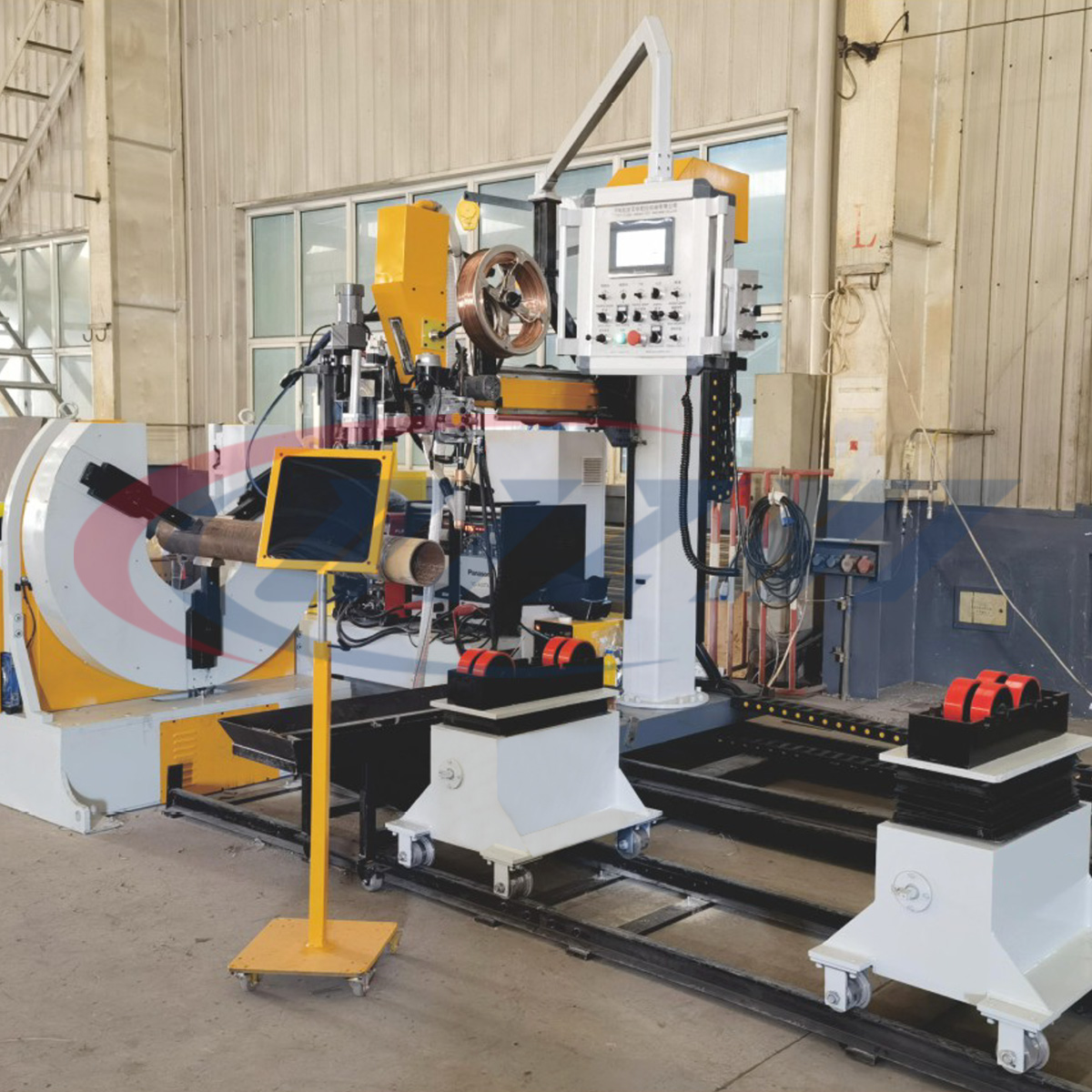

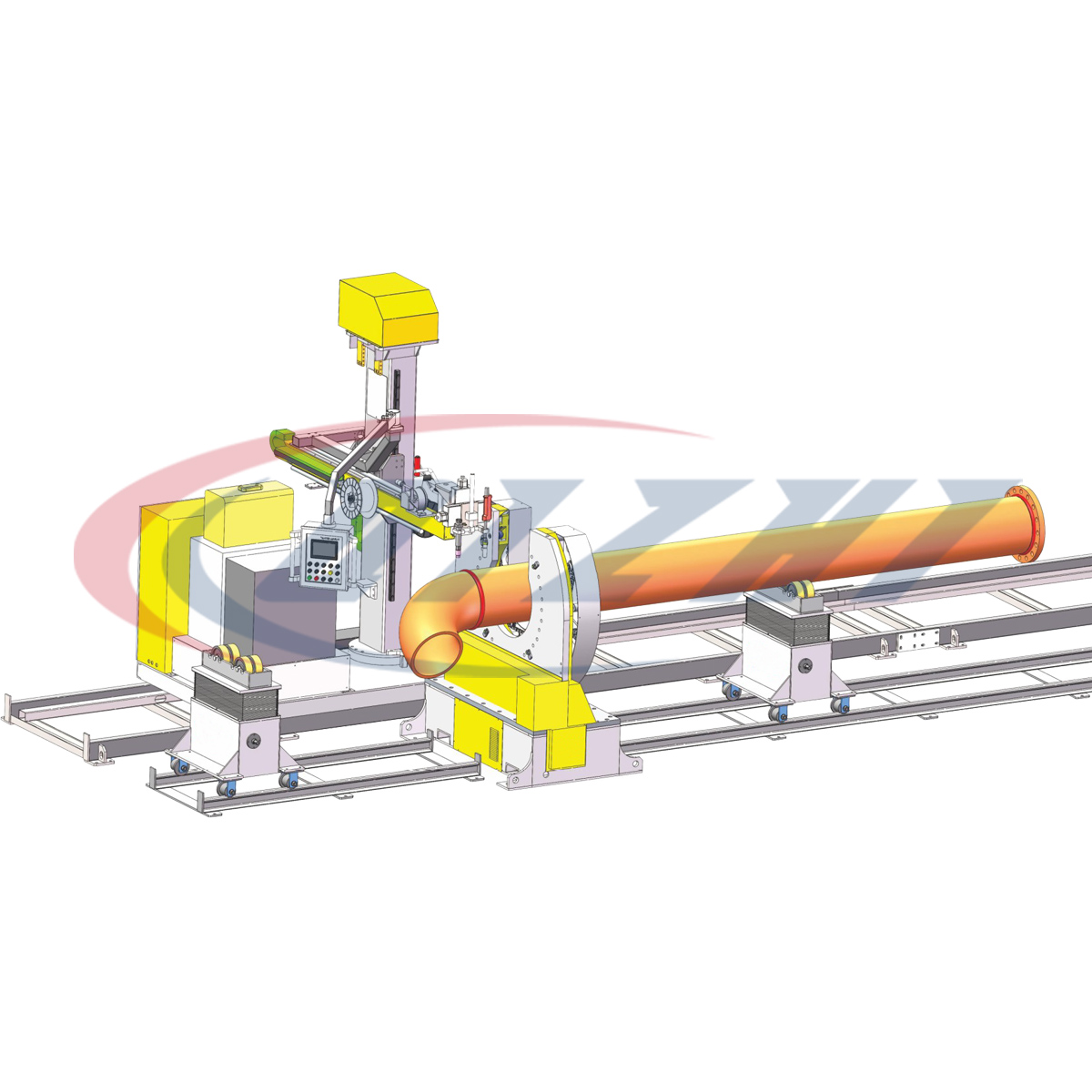

U chuck type automatic pipe welding machine

Short Description:

  • workpiece can be rotated and welded through U chuck.
  • The clamping part can ensure the coaxiality between the workpiece and the chuck body.
  • It greatly reduces the influence of the ovality and curvature of pipe spools on the welding effect, ensures the stability of chuck rotation, and ensures high-quality welding quality.

Product Detail

Product Tags

Specifications

Model QZPPFW-12 QZPPFW-16 QZPPFW-24 QZPPFW-36
Suitable for pipe size DN40-300 DN50-400 DN300-600 DN600-900
Suitable for pipe materials CS, ALS, SS, duplex SS, low-temperature steel, heat-resistant steel, etc.
can be customized for aluminum alloy, aluminum magnesium alloy
Suitable for welding seam butt seam
Welding process TIG, hot wire TIG, GMAW, SAW, PAW
user can choose one or multi-types of welding process
Control mode WPS welding process expert database, manual / automatic control
