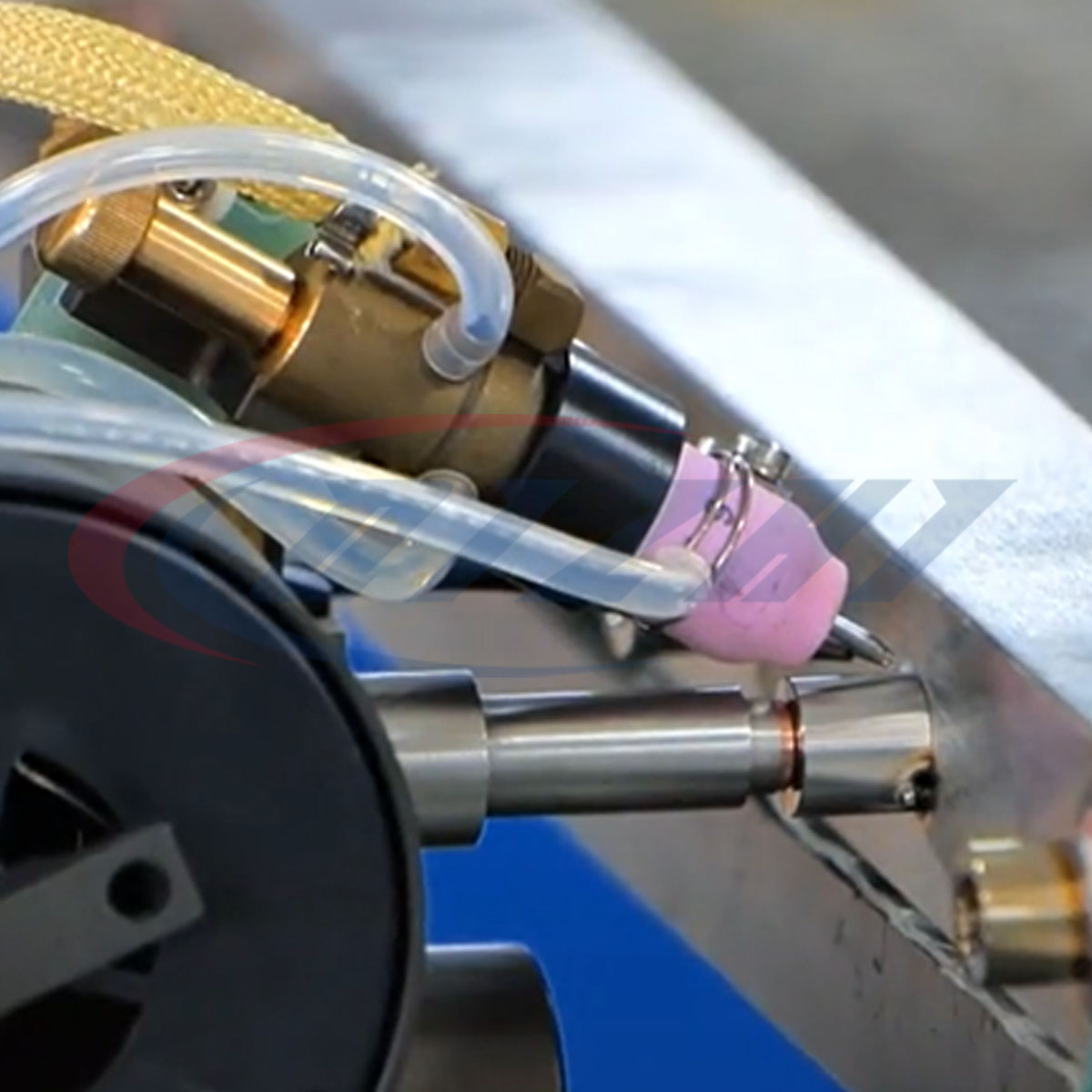

Tube to Tube Sheet Orbital Welding Machine

Short Description:

  • suitable for pharmaceuticals, boilers, and heat exchangers, nuclear power equipment production.
  • suitable for carbon steel, stainless steel, titanium alloy pipes.
  • suitable for tube size: 20mm~60mm.
  • suitable for protruding tubes or flush tubes.
  • built in wire feeding box that can adapt to 1.5kg welding wire reel.
  • suggested wire dia.: 0.8mm, 1.0mm.
  • rotating speed: 0.37-7.39rpm
  • circulating water cooling ensures the working temperature of the welding head and positioning device, ensuring long-term stability.

Product Detail

Product Tags

Specifications

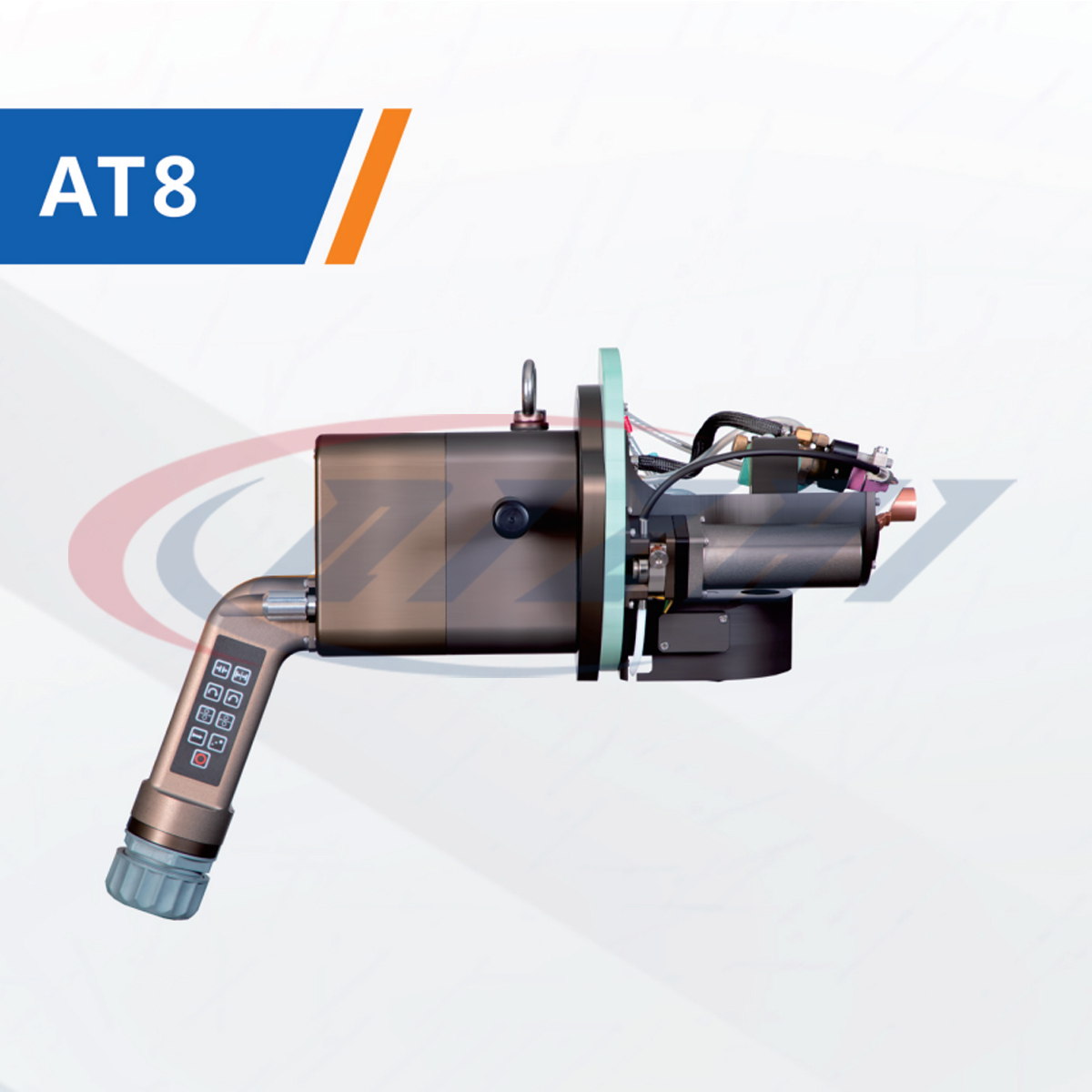

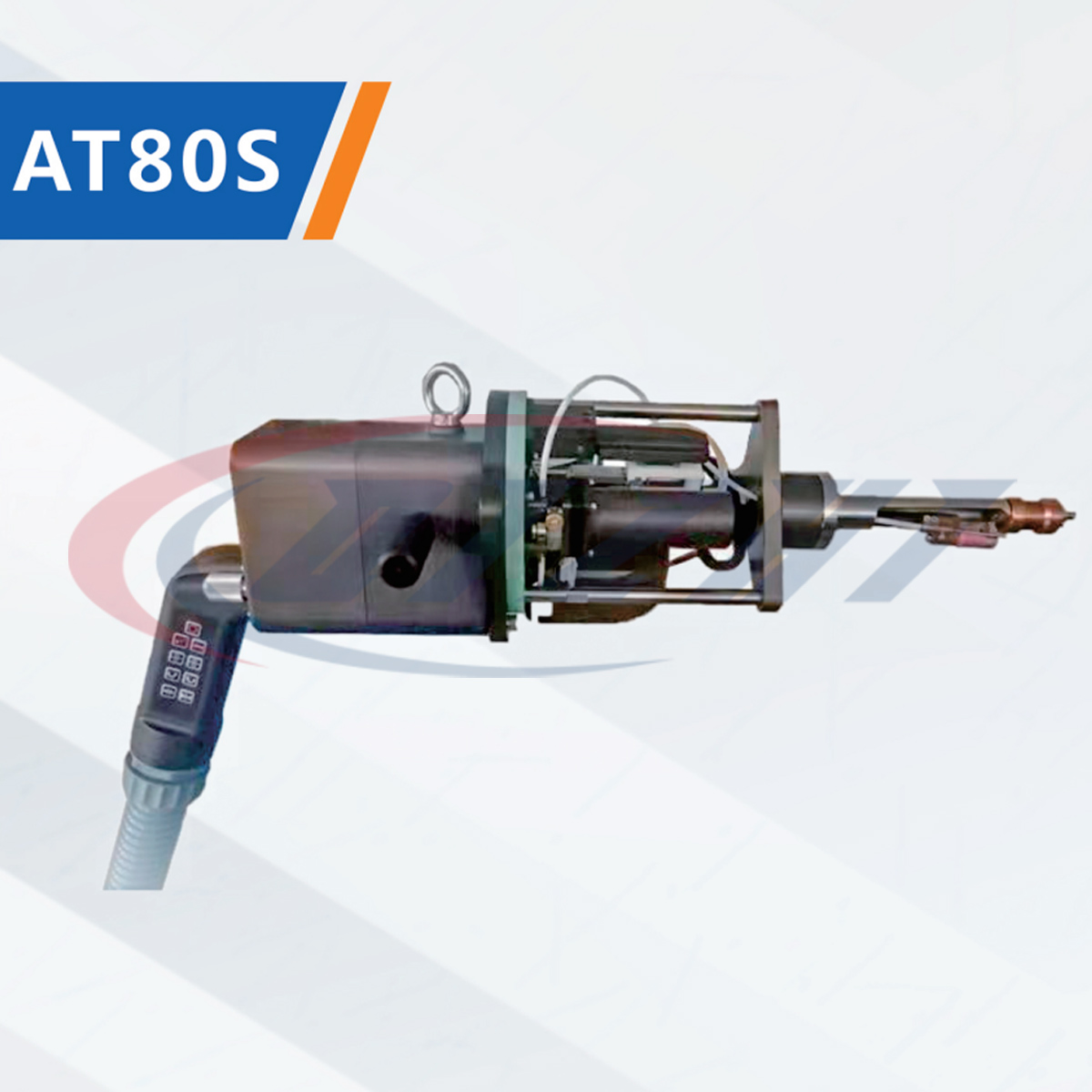

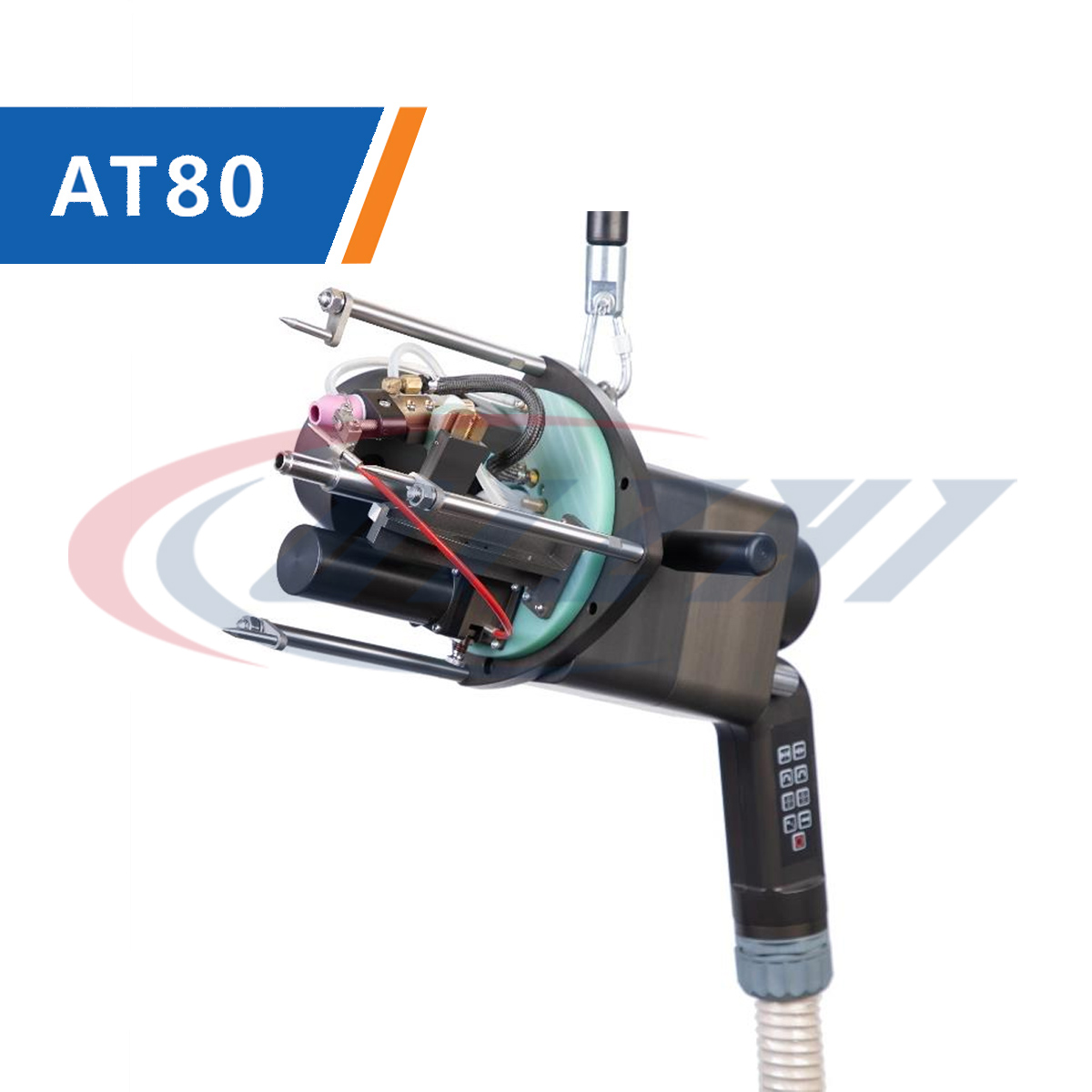

Model AT80 AT8 AT80S
Joint type Protruding tubes or flush tubes
Tube dia. 20-60mm 8-32mm 25-60mm, torch needs to be customized
Torch tilt angle 0-30° 0-30° 0-30°
Max. wire feeding speed 3000mm/min 3000mm/min 3000mm/min
Torch rotating speed 0.37-7.39rpm
Welding materials CS, SS, Titanium alloy, etc
Shielded gas Ar
Cooling mode Water cooling
Power source AW400
Weight 13KG 13KG 13KG
Dimension 402*203*303mm 402*203*303mm 402*203*303mm

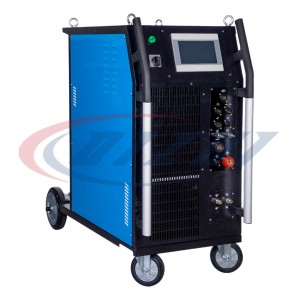

AW400 Welding Power Source

Model AW400
Power supply type Inverter type
Welding current 5~400A
Temporary load rate (20 ) 400A 60%/310A 100%
No load voltage 73V
Input voltage 380V±10% 50/60Hz
Power 13.2KVA
Insulation/protection level F/IP 21
Storable program 100 pcs
Separable interval 4pcs
Weight 90Kg
External dimensions 1081×445×990mm
welding power source
