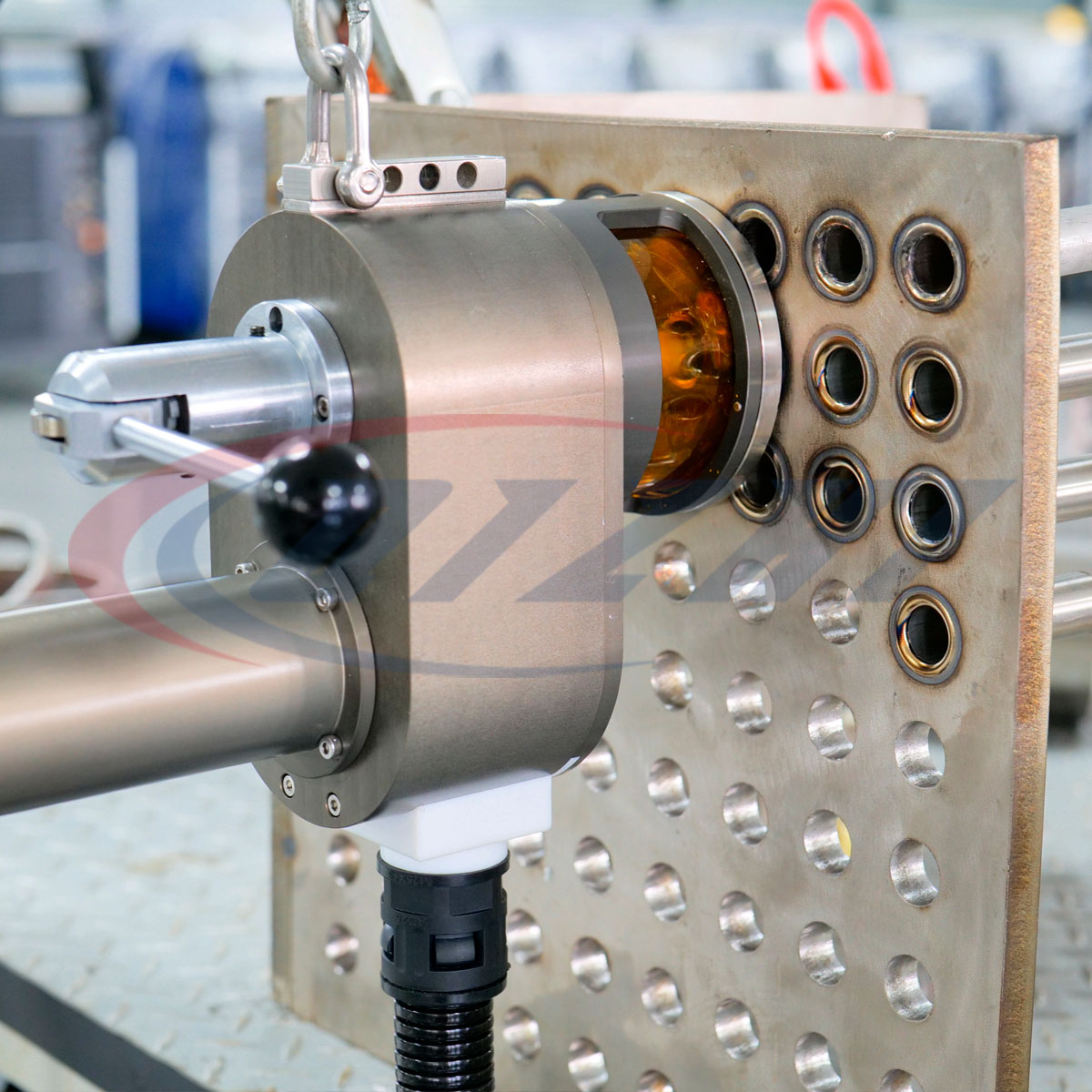

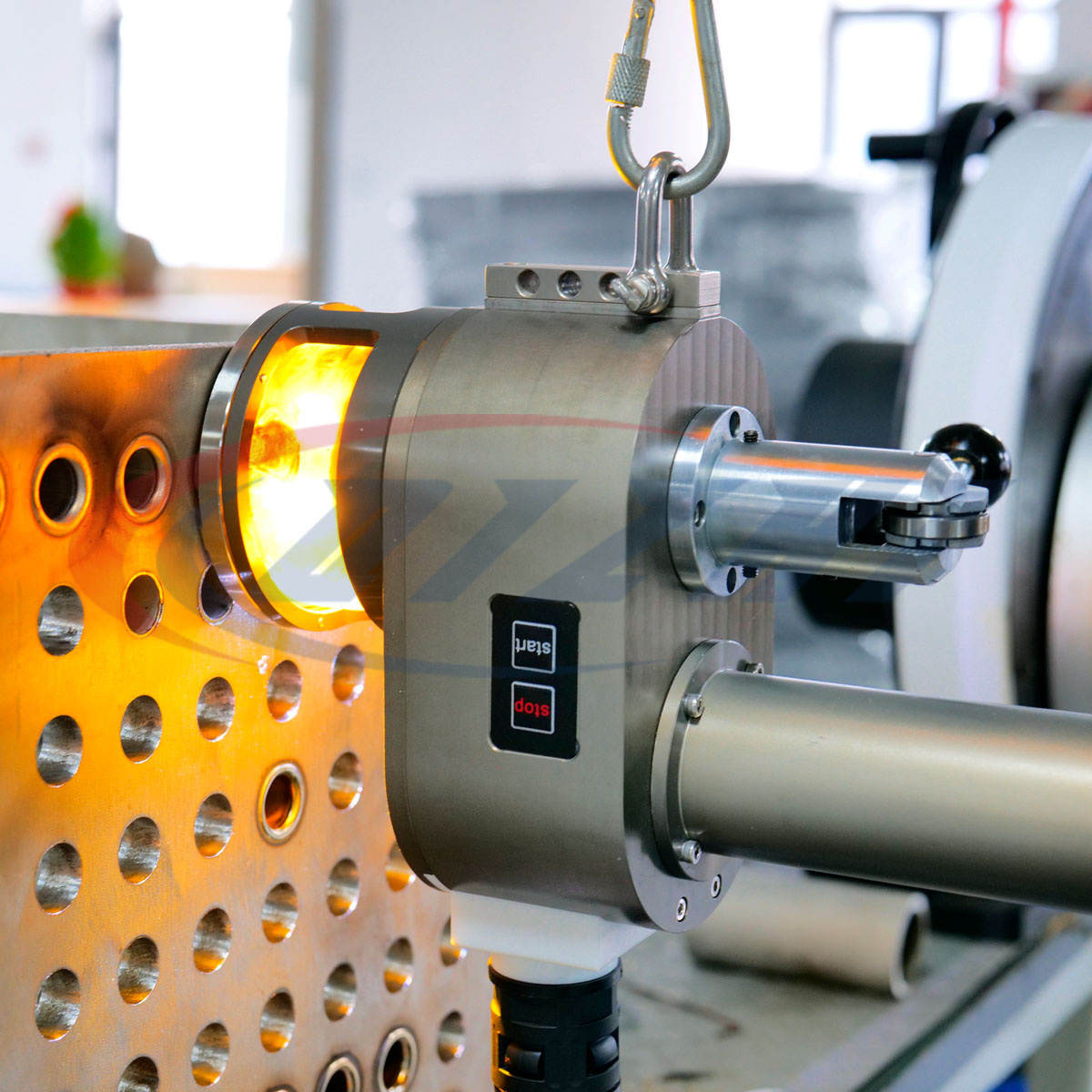

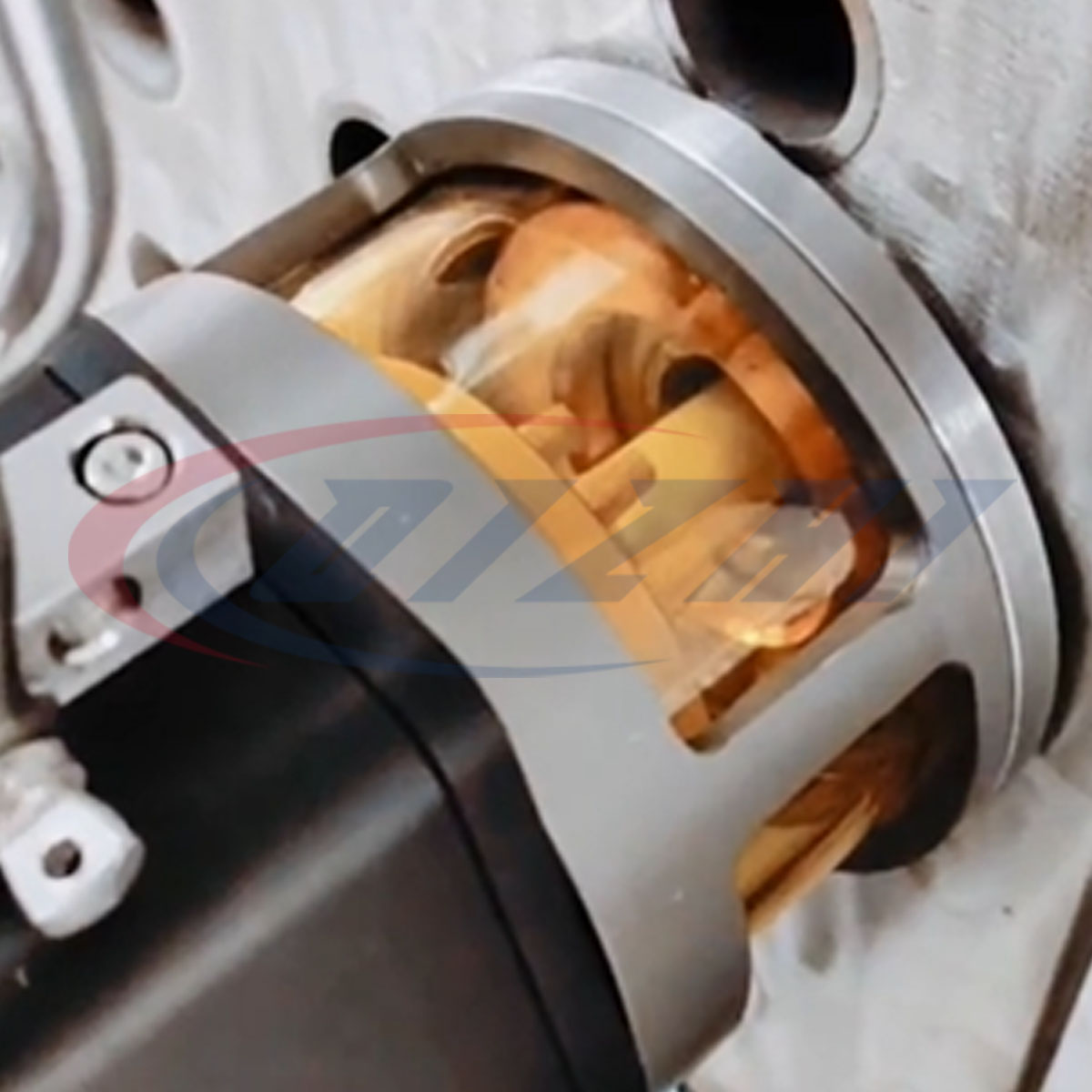

Tube to Tube Sheet Orbital Welding Machine

Short Description:

  • suitable for carbon steel, stainless steel, titanium alloy pipes.
  • no filler wire, compact design, light weight.
  • accurate positioning, easy operation.
  • circulating water cooling ensures long time working.
  • closed welding can obtain high-quality welds.

Product Detail

Product Tags

Specifications

Model AT40
Joint type Flush tubes
Tube dia. 16-38mm
Torch tilt angle 0°/7°
Max. wire feeding speed no filler wire
Torch rotating speed 0.37-7.39rpm
Welding materials CS, SS, Titanium alloy, etc
Shielded gas Ar
Cooling mode Water cooling
Duty cycle 300A 70%
Weight 3KG
Dimension 327*121*134mm

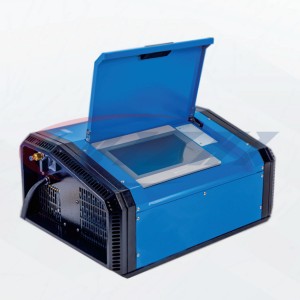

AW200 Welding Power Source

Model AW200
Welding current 5~200A
Temporary load rate (20 ) 200A 60%,155A 100%
No load voltage 65V
Input voltage AC 220V ±10% 50/60hz
Power 4.5KVA
Insulation/protection level F/IP 21
Storable program 100 pcs
Separable interval 8pcs
Weight 18Kg,without water
Water tank capacity 3.7L
Printing Micro thermal printer
External dimensions 580*40*260mm





AW200
