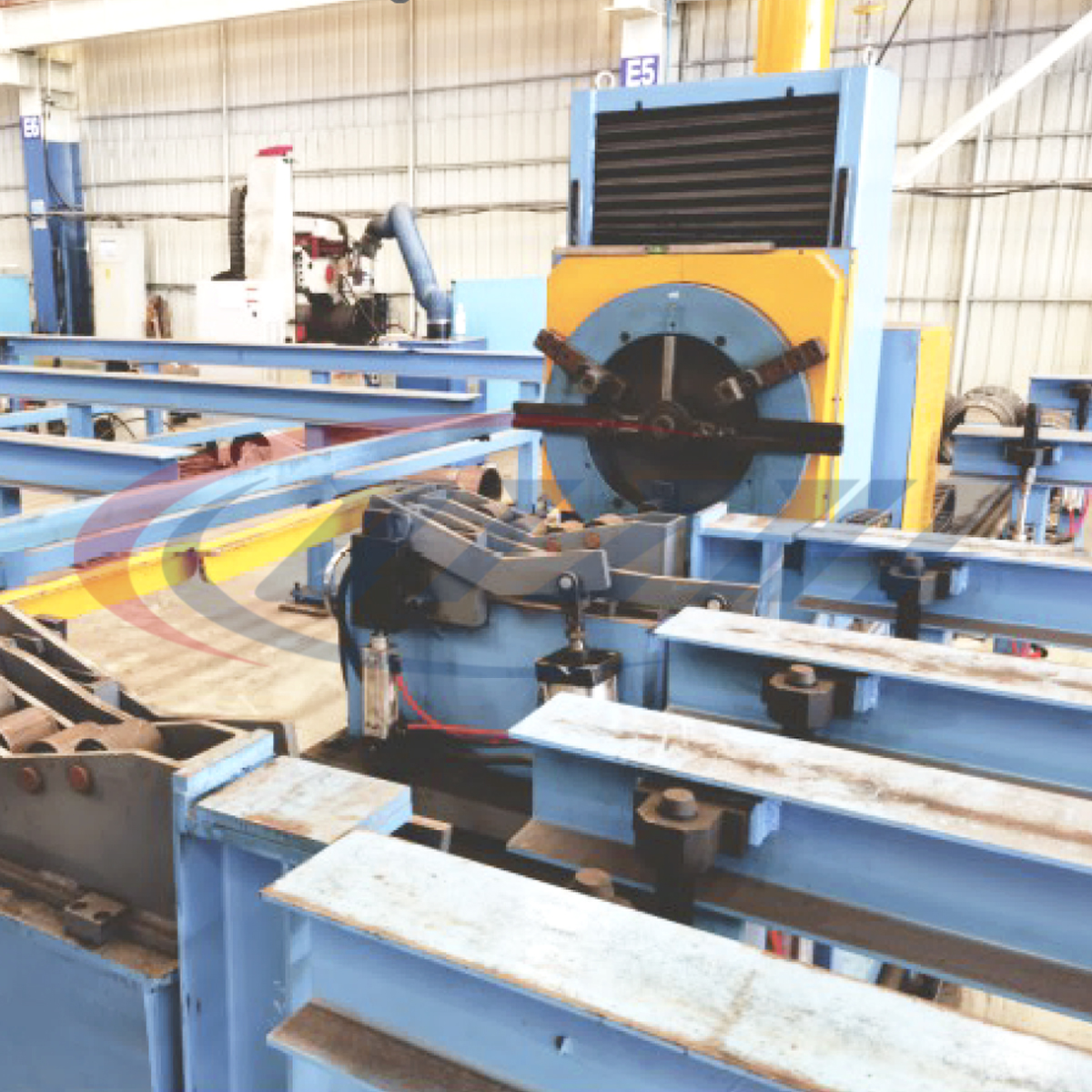

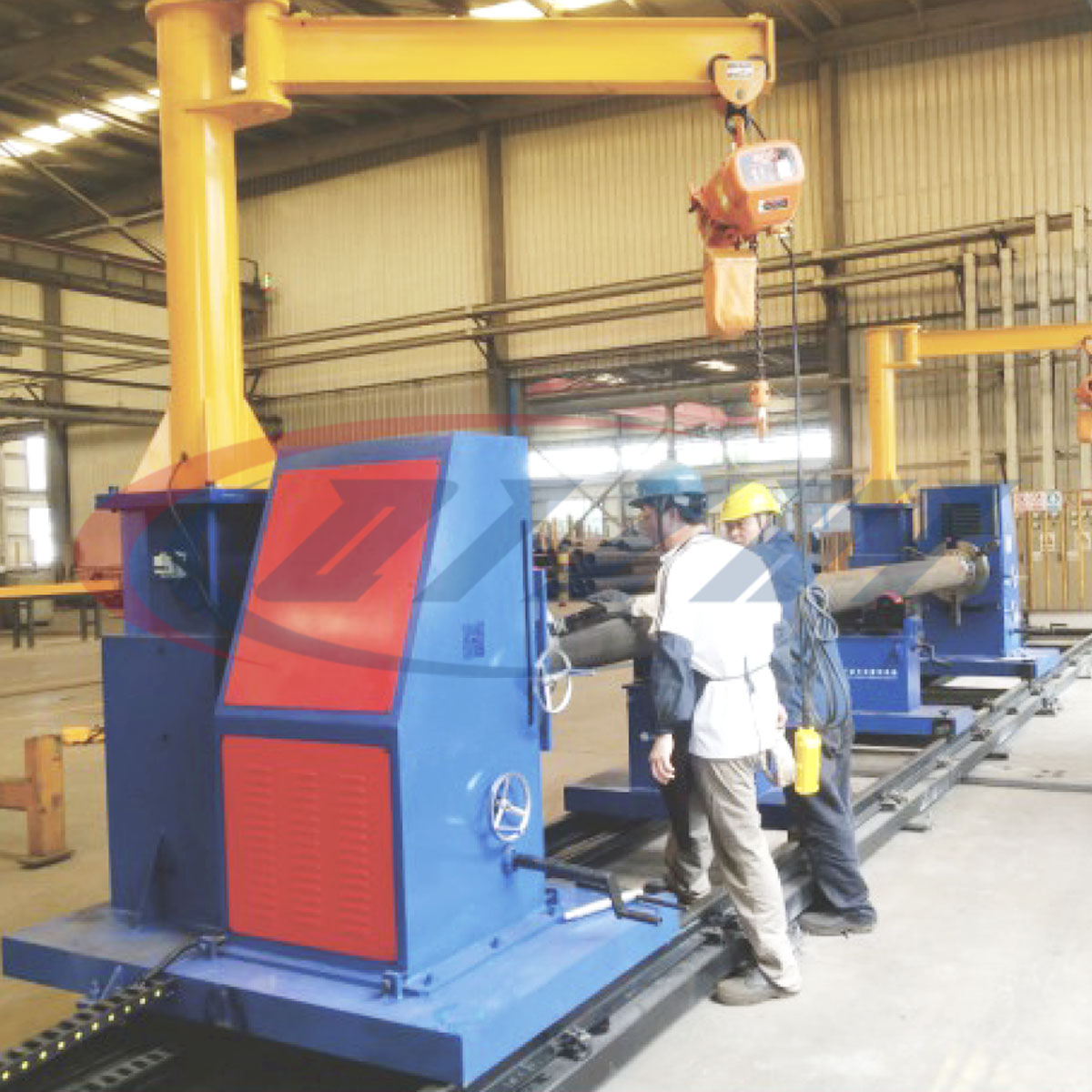

Slip on flange fitting up machine

Short Description:

  • Suitable for pipe and flange fitting up(slip on flange or WNF)
  • Special designed cross type chuck to clamp flange and adjust the position of flange
  • Chuck can rotate in ±45° to meet special fitting up requirement.
  • Flange fitting up machine can move along the rail to suitable for different pipe length.

Product Detail

Product Tags

Specifications

Model QFMG-16 QFMG-24 QFMG-32 QFMG-40 QFMG-48
Suitable for pipe size DN50-400 DN100-600 DN100-800 DN200-1000 DN300-1200
Chuck lifting stroke ≤200mm ≤300mm ≤400mm ≤400mm ≤500mm
Chuck rotating angle ±45° ±45° ±45° ±45° ±45°
Fitting up machine movement manual or motorized driven, rail length can be designed based on pipe length
