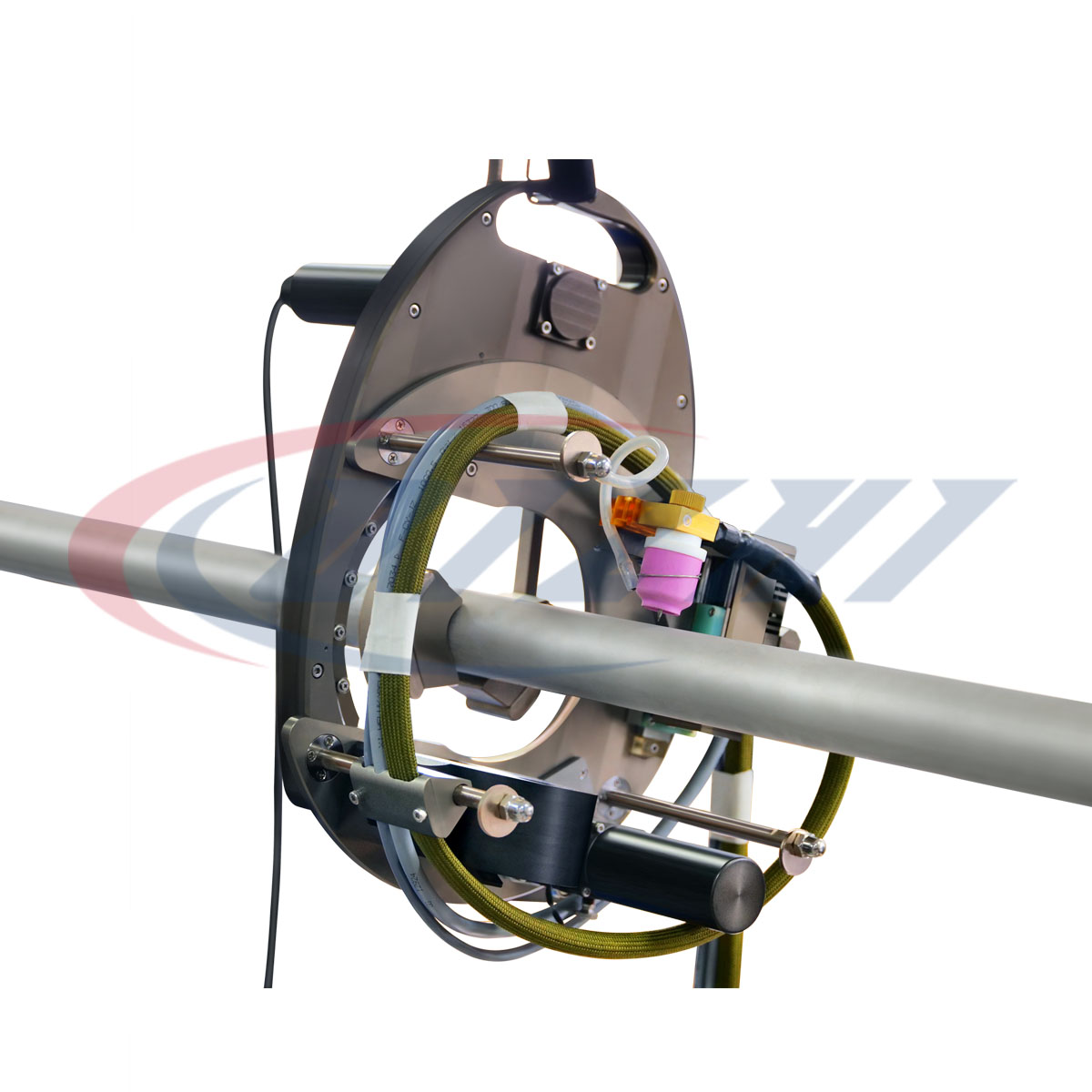

Open Type Pipe and Pipe Welding Machine

Short Description:

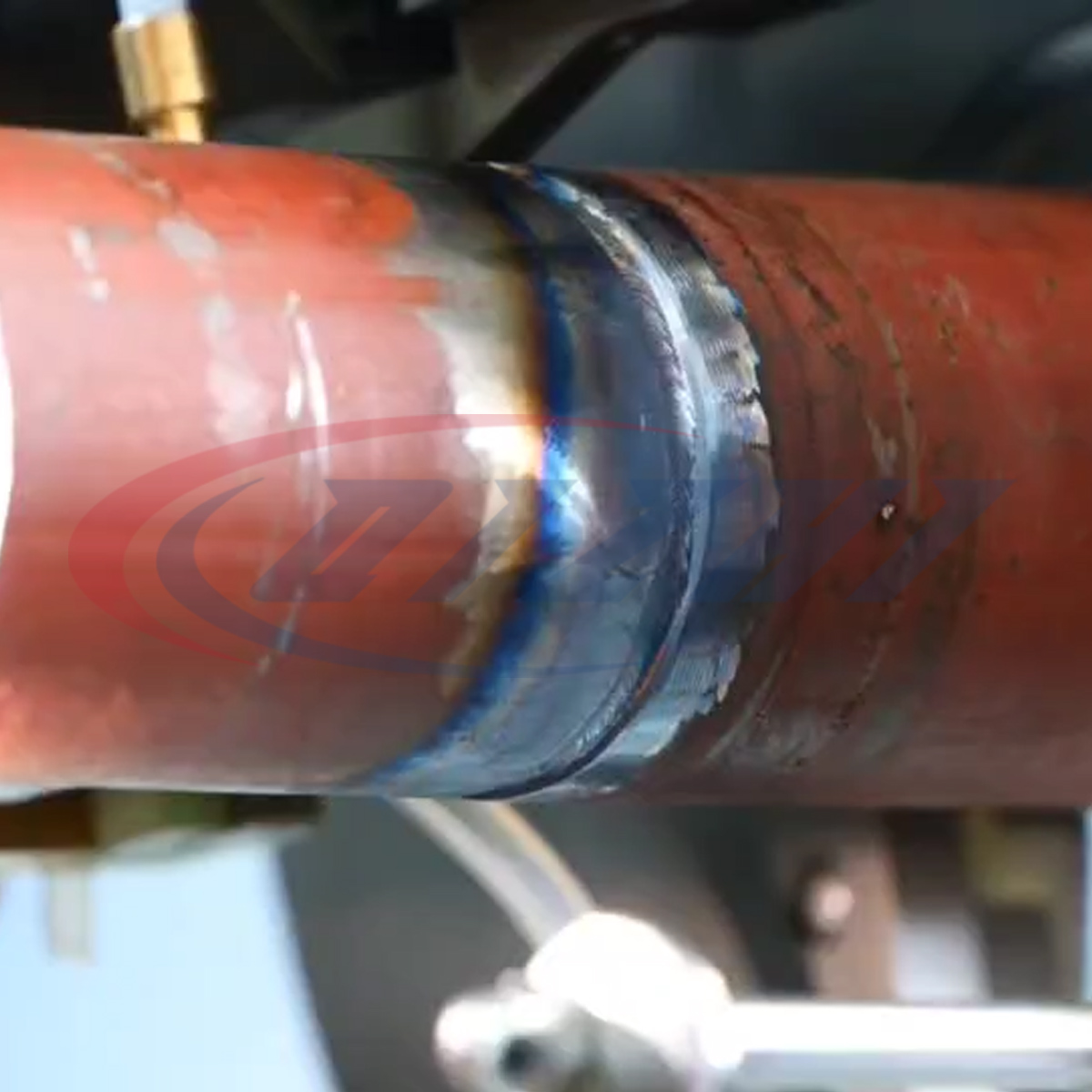

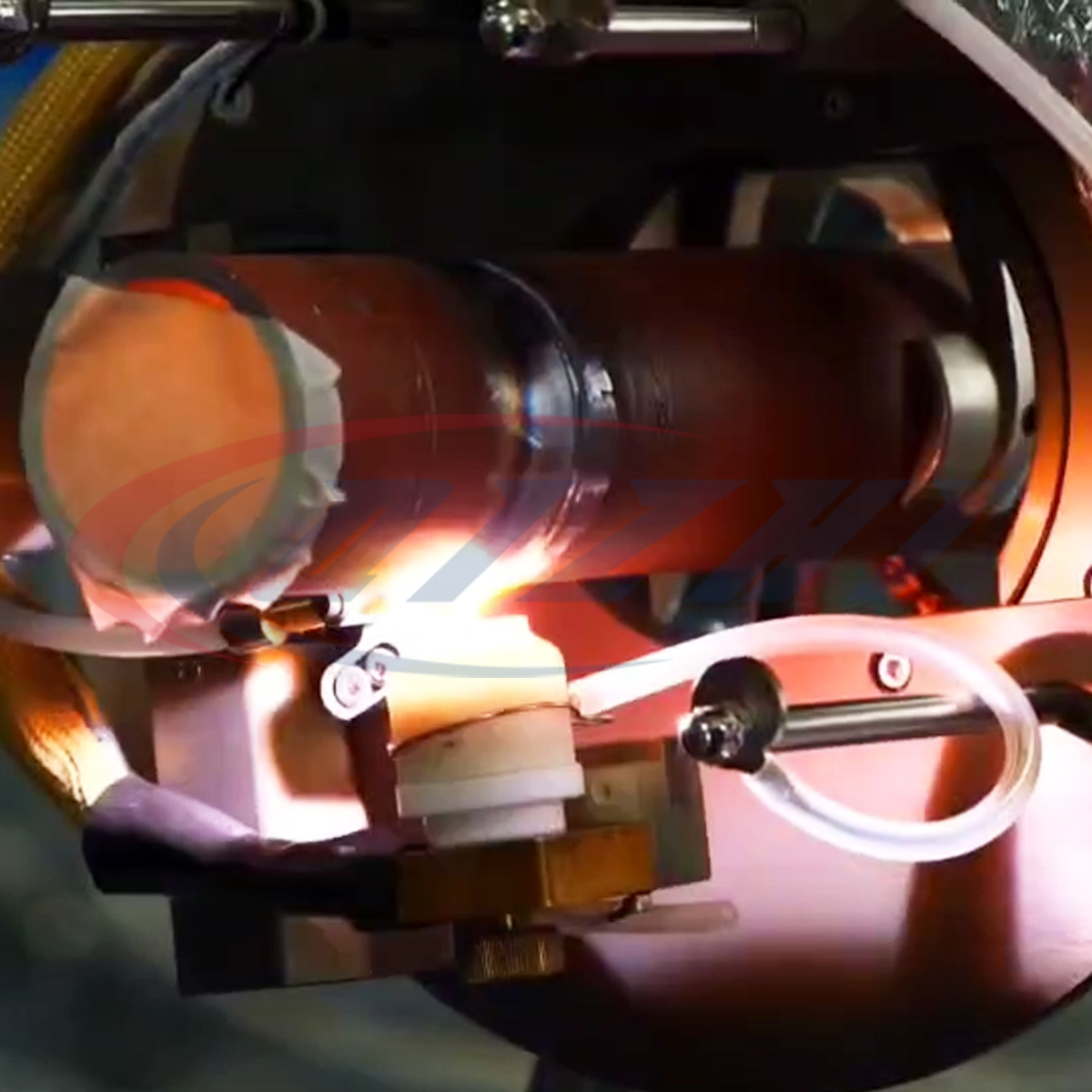

It is suitable for all position welding of 2-10mm thickness pipes and can weld materials such as carbon steel, stainless steel, titanium alloy, and duplex SS. It can be used in two ways: wire filling and self- melting. It comes with functions such as integrated wire feeding and automatic arc length lateral swing. When combined with the AW400 programmable welding power supply, it can achieve precise welding and achieve full penetration welding results.

Send email to us Send email to us

Product Detail

Product Tags

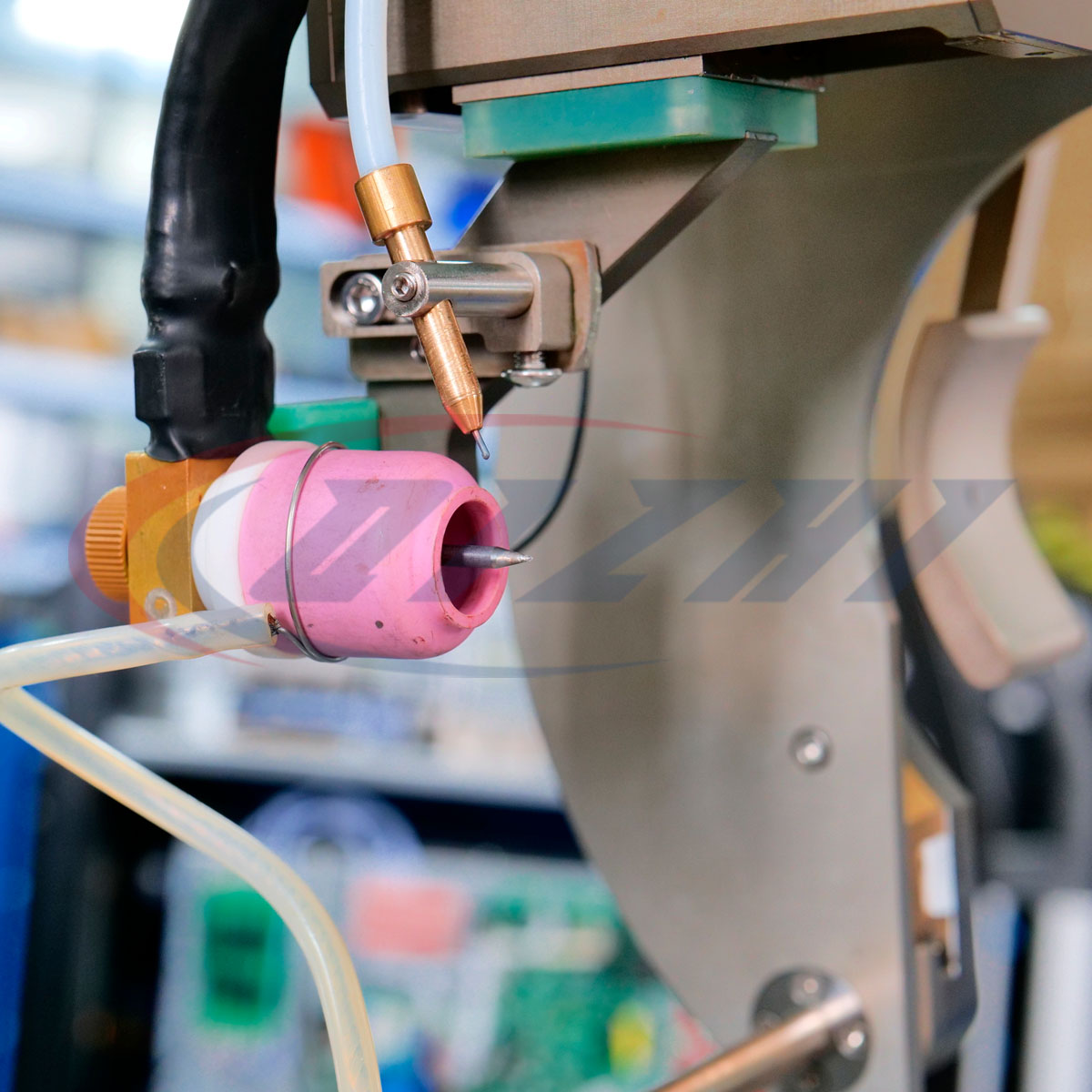

orbital pipe welding machine-open type10

Specifications

Model	TOA77	TOA130	TOA180
Welding materials	CS, SS	CS, SS	CS, SS
Pipe size	Inner clamp: φ19.05-φ45(3/4-7/3)	Inner clamp: φ38.1-φ76(3/2-3)	Inner clamp: φ50.8-φ114.3(2-9/2)
Pipe size	Outer clamp: φ45-φ77(7/4-3)	Outer clamp: φ76-φ130/(3-5)	Outer clamp: φ114.3-φ180(9/2-7)
Max pipe thickness	10mm	10mm	10mm
Tungsten diameter	φ3.2	φ3.2	φ3.2
Rotation speed	0.19-3.8rpm	0.11-2.2rpm	0.09-1.8rpm
Shield gas	Ar	Ar	Ar
Cooling mode	Water cooling	Water cooling	Water cooling
Cooling flow	≥300L/H	≥300 L/H	≥300 L/H
Lateral swing width	20mm	40mm	40mm
Arc length heigh	40mm	40mm	40mm
Wire dia.	Φ1mm, standard supply	Φ1mm, standard supply	Φ1mm, standard supply
Max. wire feeding speed	1800mm/min	1800mm/min	1800mm/min

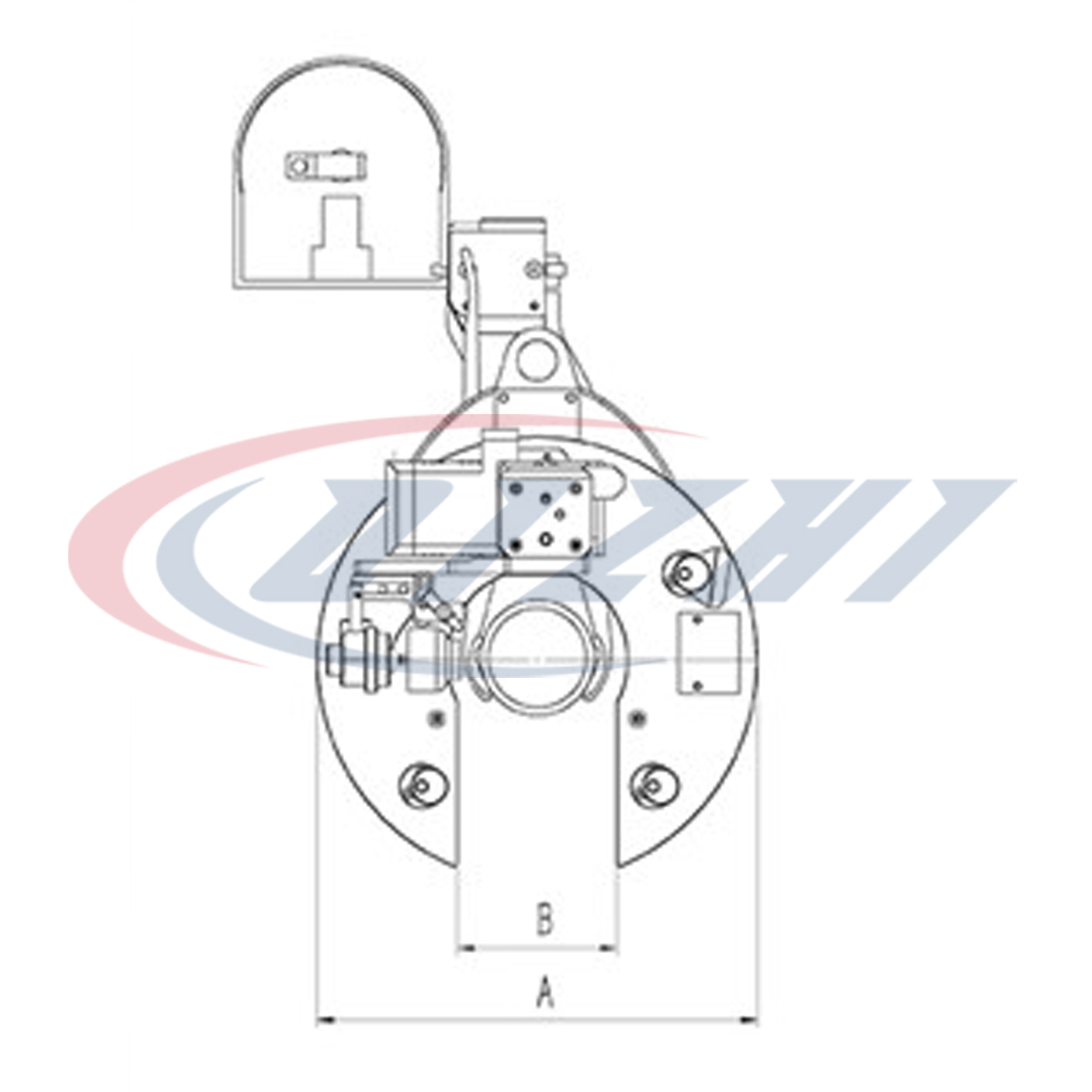

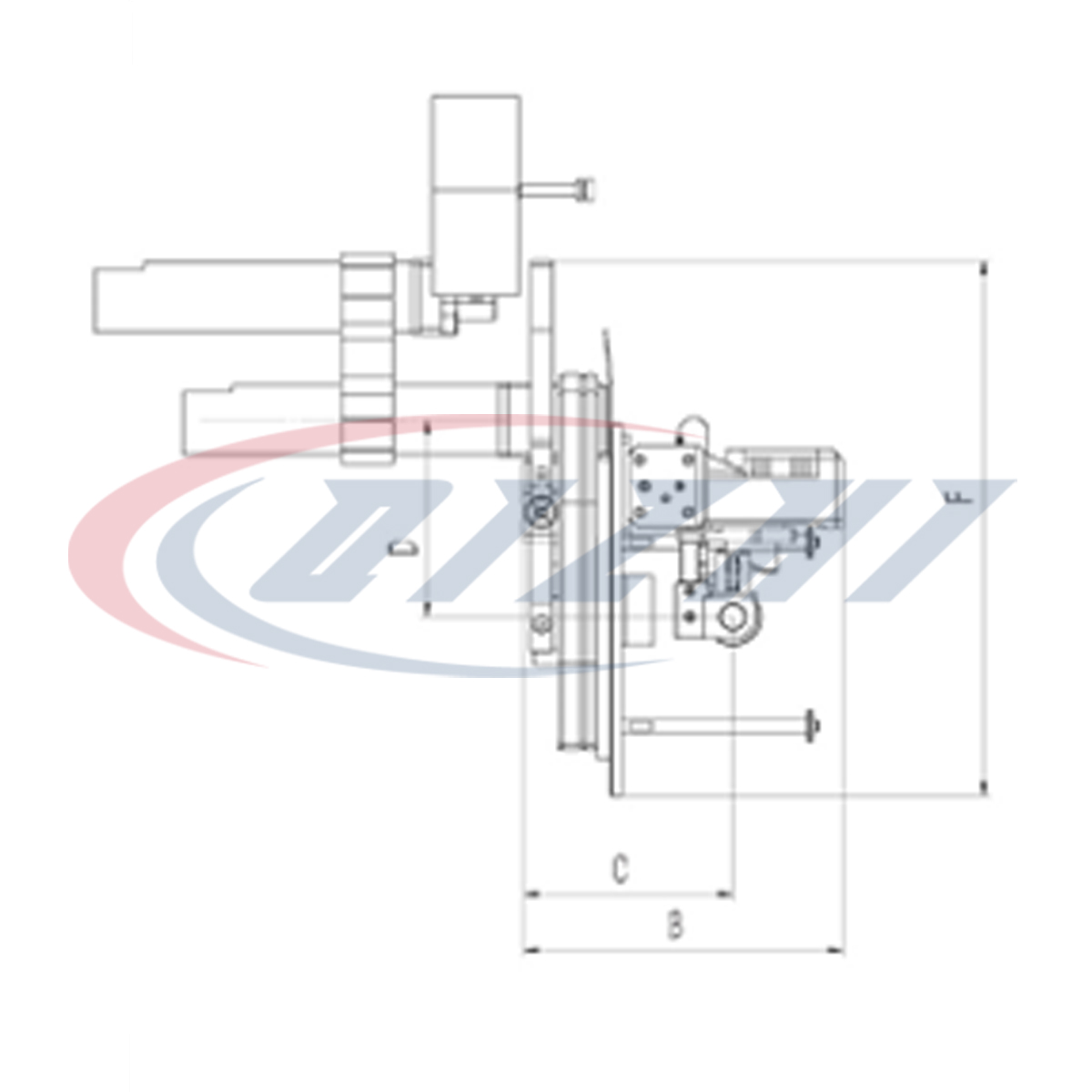

Dimension
A	220mm	300mm	375mm
B	182mm	235mm	285mm
C	112mm-132mm	137mm-177mm	184mm-224mm
D	112mm	165mm	225mm
E	82mm	132mm	182mm
F	305mm	403mm	525mm
Weight	5.5kg	10g	19kg

AW400 Welding Power

Model	AW400
Power supply type	Inverter type
Welding current	5～400A
Temporary load rate (20 ℃)	400A 60%/310A 100%
No load voltage	73V
Input voltage	380V±10% 50/60Hz
Power	13.2KVA
Insulation/protection level	F/IP 21
Storable program	100 pcs
Separable interval	10pcs
Weight	90Kg
External dimensions	1081×445×990mm
