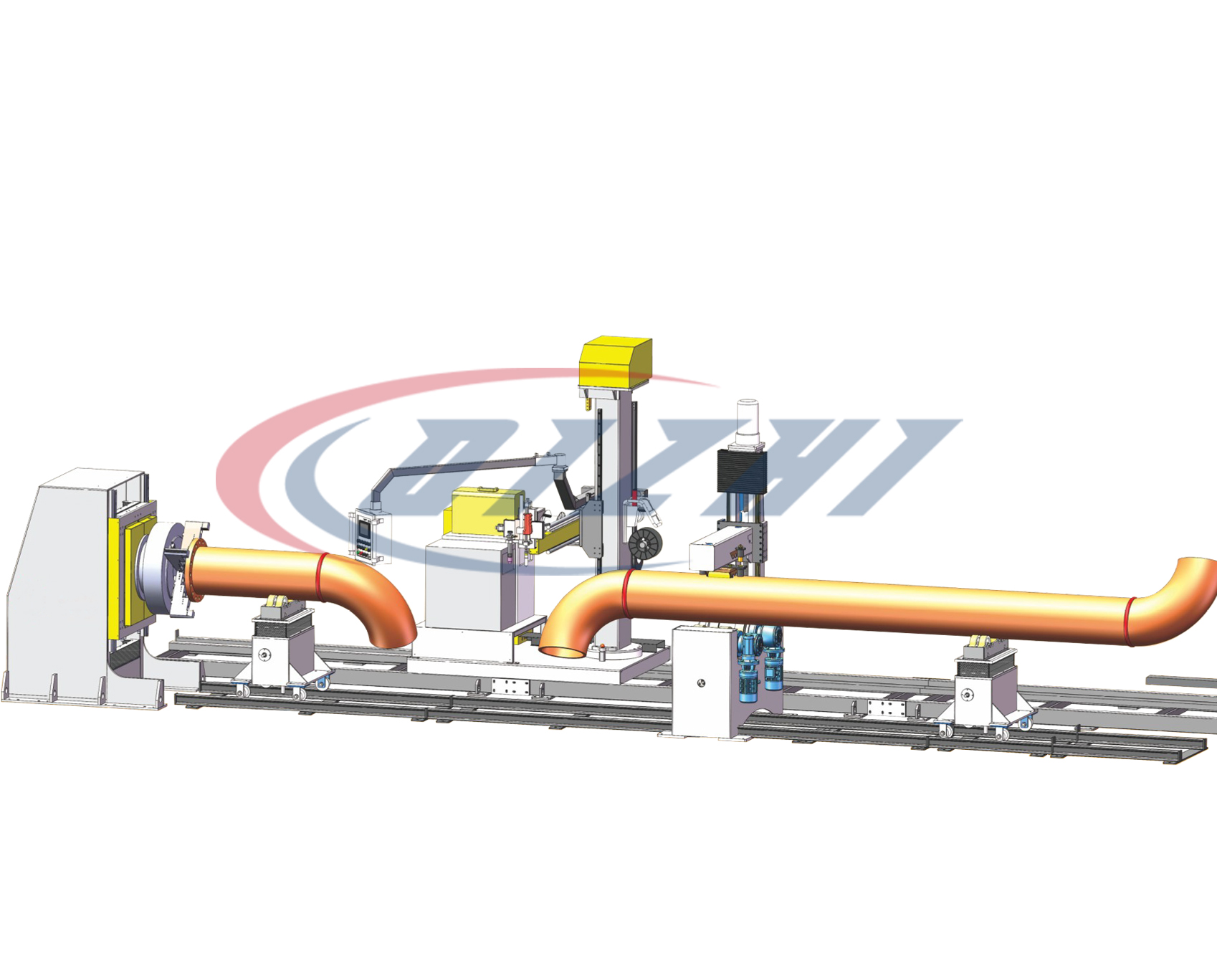

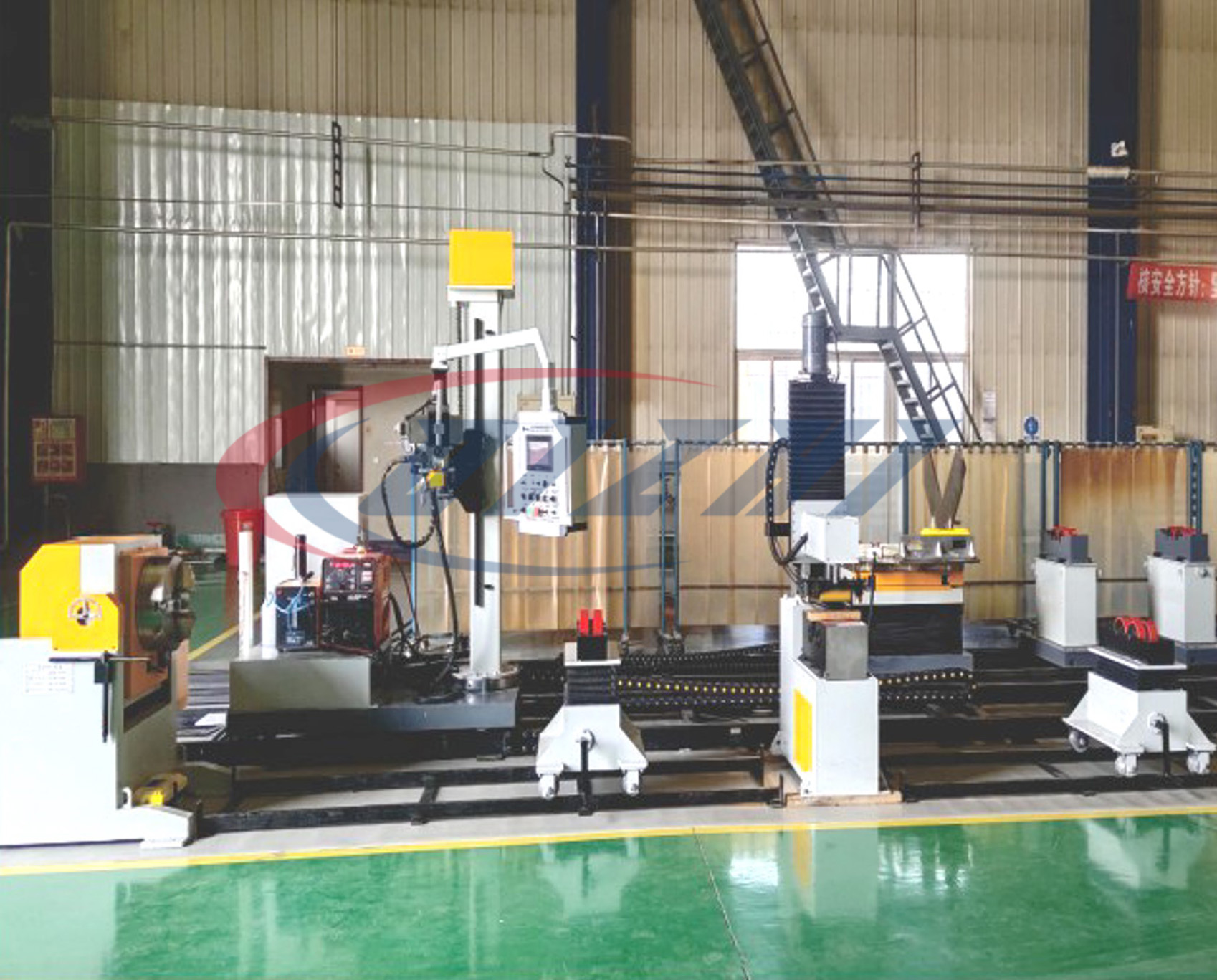

Combined type automatic pipe welding machine

It is designed with two driving machine: chuck type driving machine and press roller type driving machine.
When one driving machine is used for welding, another driving machine can be used for loading/uploading of pipe spool, welding pretreatment, interlayer cooling, etc.
Column and boom type welding machine can switch between two driving machines, improve machine utilization.
Suitable for various industries multi-types pipe spools welding. Especially suitable for alloy steel welding that saving layer cooling time and increase welding arcing time

Product Detail

00:00

Model	QZPPDW-16	QZPPDW-24	QZPPDW-32	QZPPDW-40	QZPPDW-48
Suitable for pipe size	DN30-400	DN50-600	DN100-800	DN200-1000	DN300-1200
Suitable for pipe materials	CS, ALS, SS, duplex SS, low-temperature steel, heat-resistant steel, etc. can be customized for aluminum alloy, aluminum magnesium alloy
Suitable for welding seam	butt seam/ corner seam (optional function)
Welding process	TIG, hot wire TIG, GMAW, SAW, PAW user can choose one or multi-types of welding methods
Control mode	PLC control, WPS welding process expert database
