  • Automatic nozzle cutting machine (Portable type)

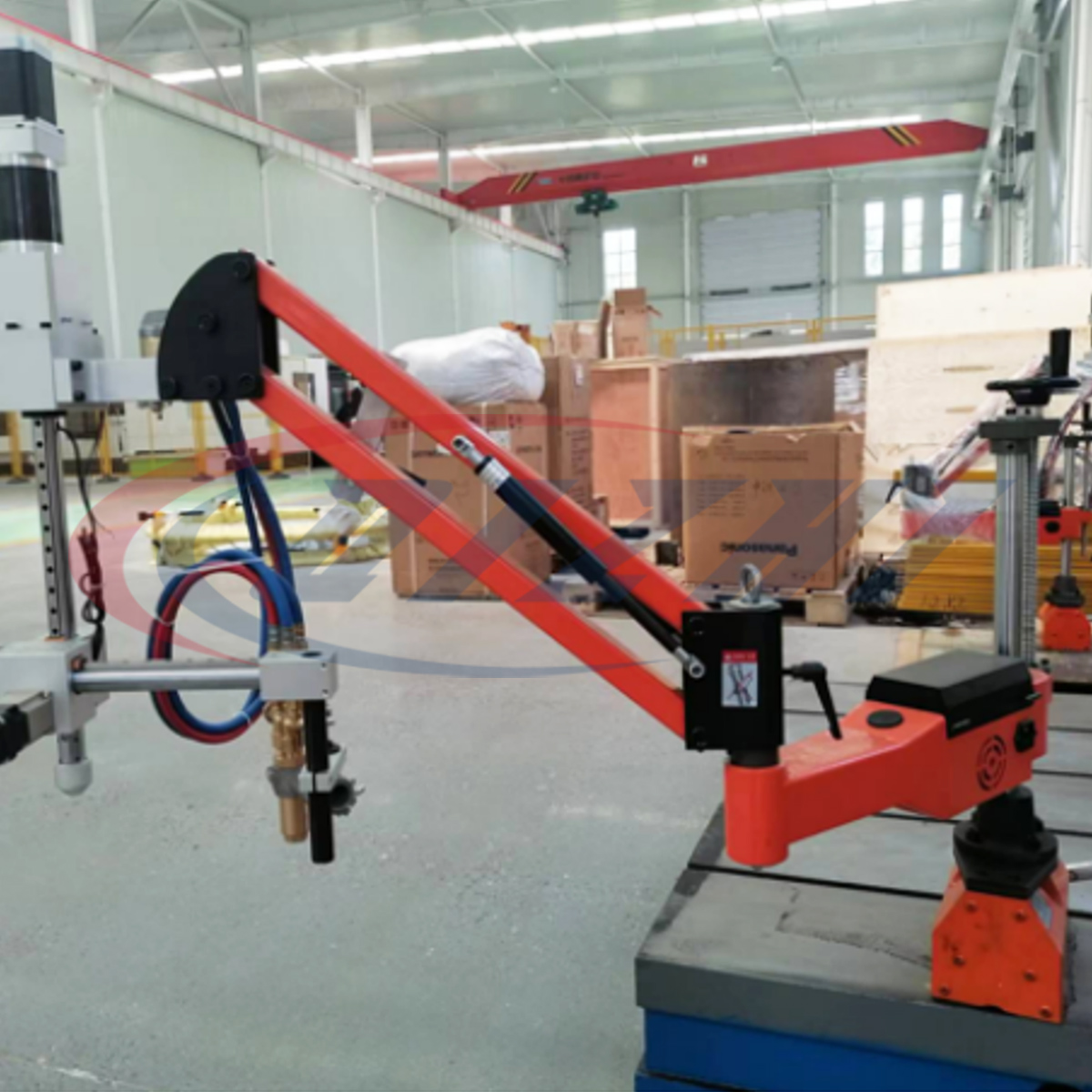

Automatic nozzle cutting machine (Portable type)

Short Description:

  • This machine is mainly used in industries such as boilers, chemical pressure vessels, nuclear power equipment, etc., where holes are opened on pressure vessels or dish ends, as well as pipe intersecting line cutting. Equipped with a CNC flame cutting system, cutting work can be completed with high quality and efficiency. It is suitable for cutting materials such as carbon steel and low alloy steel.

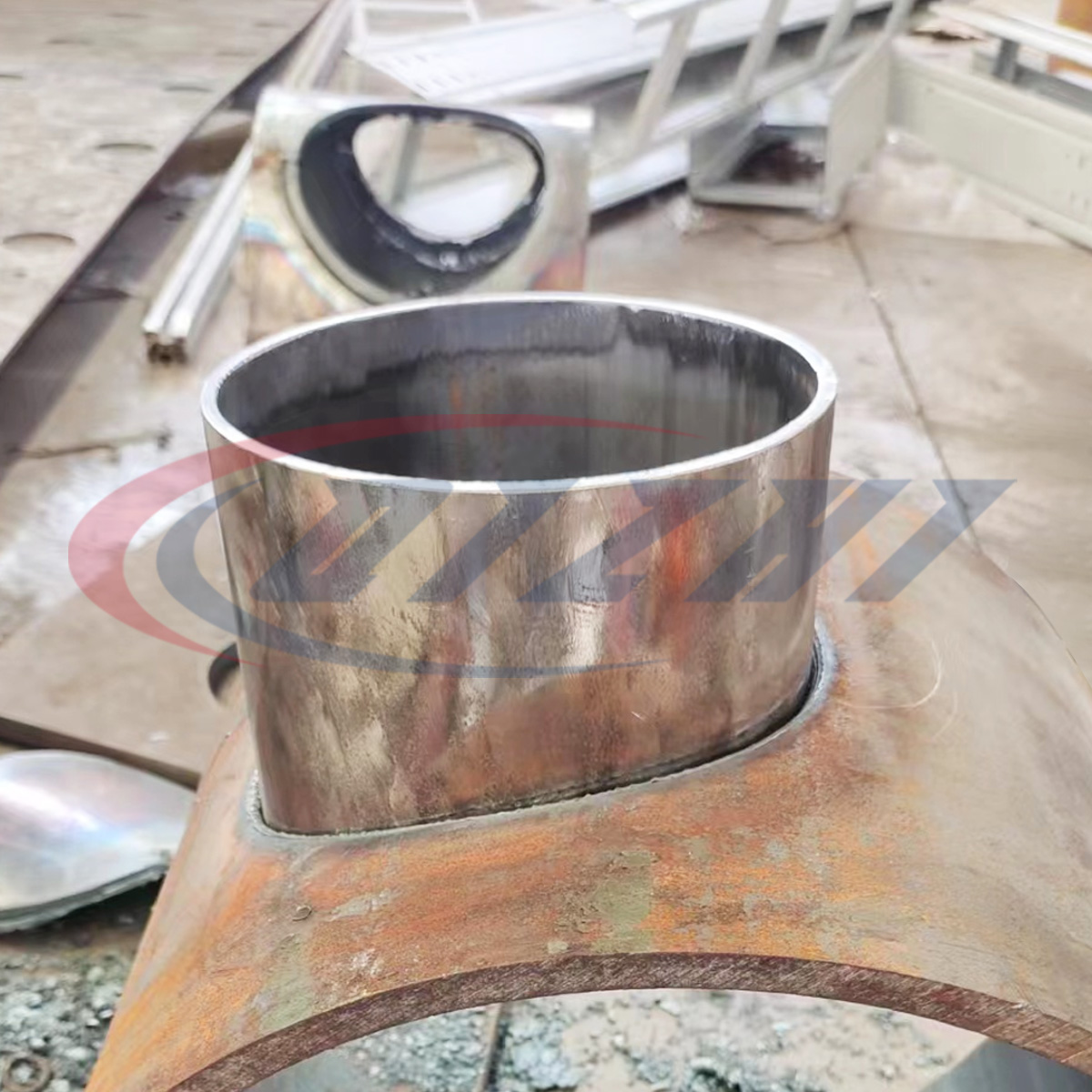

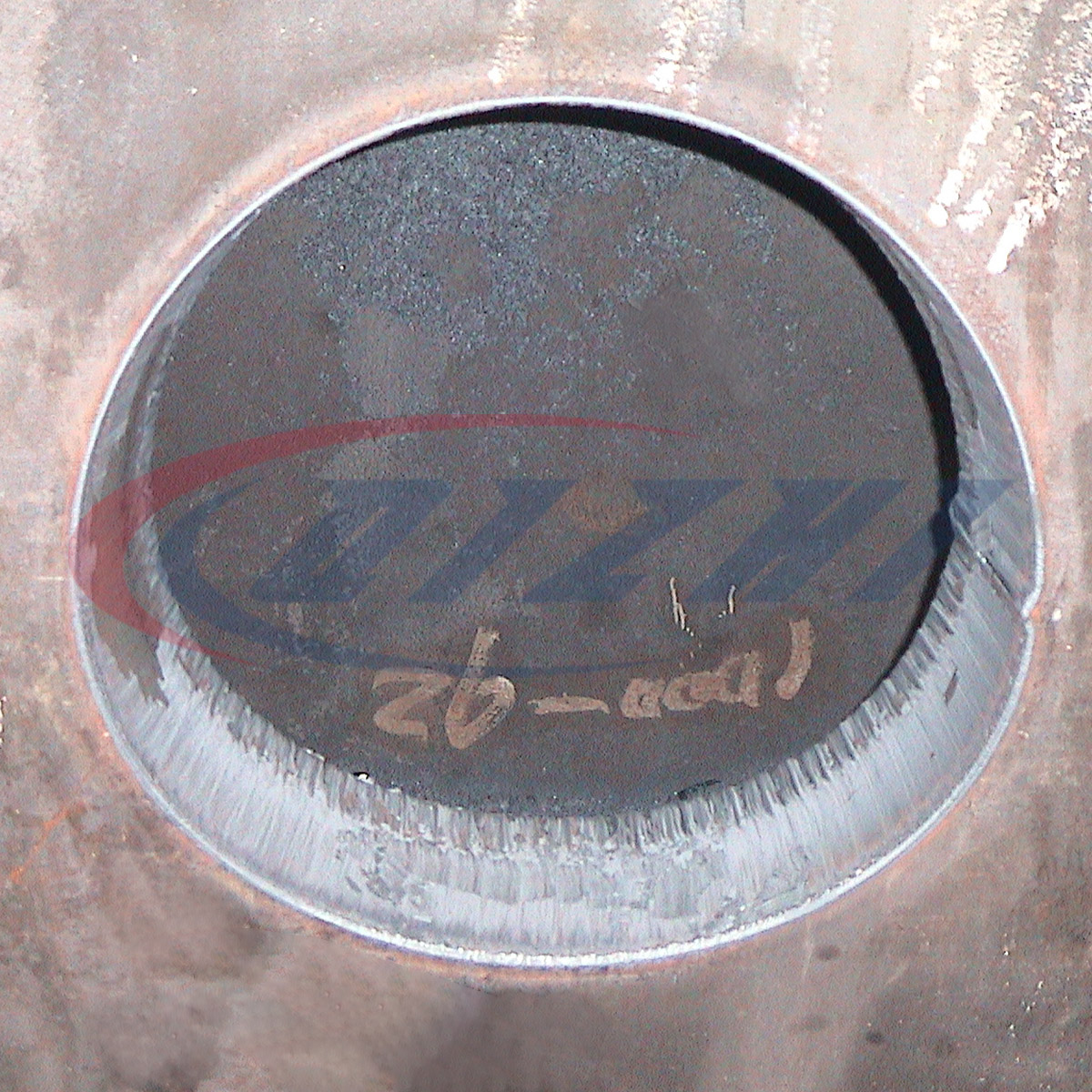

  • Suitable for center to center, and offset nozzle cutting.

Product Detail

Product Tags

Specifications

Cutting capacity(dia.) 100～600mm

Standard machine: straight cutting

Optional function: beveling
Diameter ratio of pressure vessel to nozzle ≥3
Saddle drop amount 0～200mm
Max. cutting thickness 200mm
Beveling angle ±45°
Cutting nozzle Oxygen acetylene cutting nozzle or oxygen propane cutting nozzle(depends on user’s requirement)
Radial speed 80～300mm/min
Cutting speed 100～300mm/min
Diagonal beveling angle ±45°
