Automatic membrane panel production line (SAW)

Short Description:

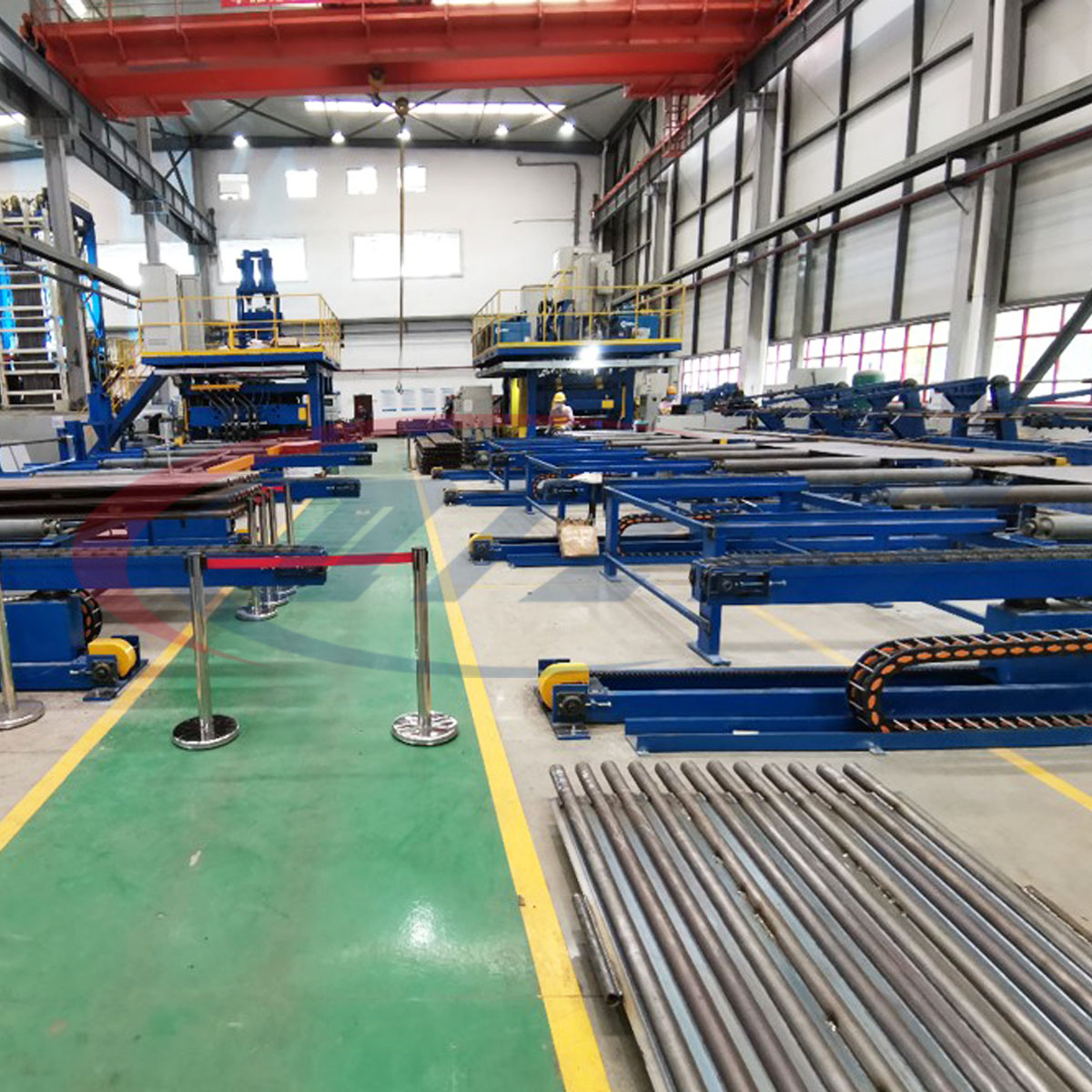

QIZHI provides customized membrane panel welding production line for boiler manufacturers. We can provide SAW method or MIG method production lines. The complete line consists of several machines, such as main machine, uncoiler, finishing machine, automatic feeding in device, welding flux feeding and recycling device, welding slag crushing device, welding slag recycling device, storage rack, handling device, turning device, pipe polishing machine, etc. Such production line can be 6 heads, 8heads, 10 heads or more heads.

Send email to us Send email to us

Product Detail

Product Tags

00:00

Features

provide streamlined logistic for tubes and flat steels;
specialized conductive mechanism (international famous brand) to direct current to each welding seam and improve anti-interface ability;
improve the clamping force of the upper pressing roller to effectively ensure the clamping and closing force of the groove wheel on the panel during welding, as well as the stability of the center position of the flat steel;

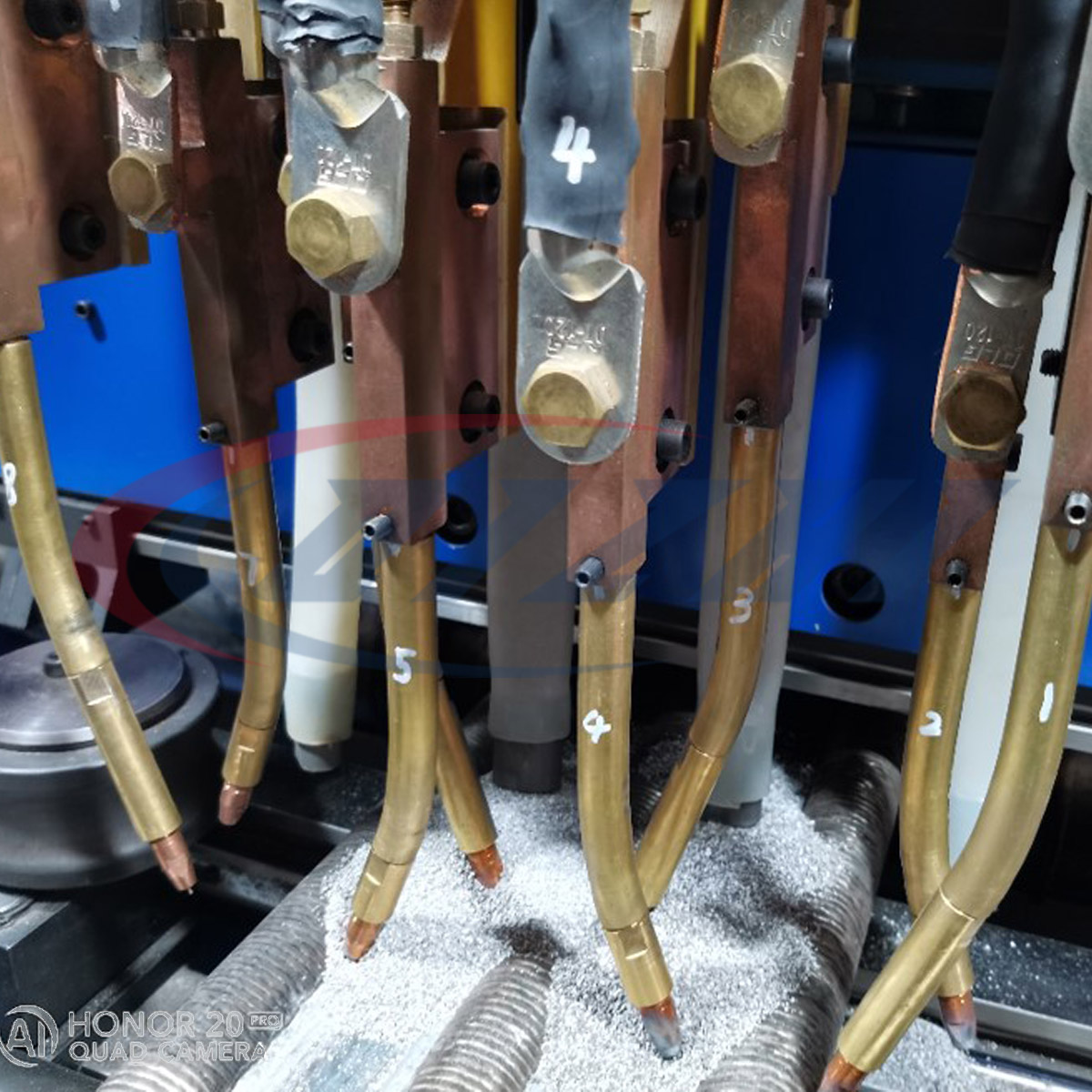

more welding torches can be applied in the whole production line.

Specifications

Tube size:	32-76mm
Tube thickness:	3~9mm
Flat steel width:	10~110mm(±0.1mm)
Flat steel thickness:	4~10mm ±0.1mm
Max. panel width:	1600mm
Max. panel size:	12000*1600mm
Welding speed:	800-1100mm/min
Welding method:	SAW
