Automatic manned welding column and boom

Short Description:

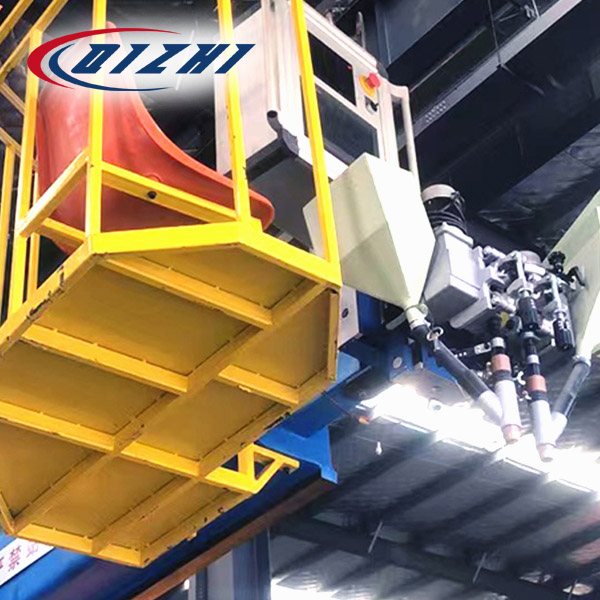

Manned Welding Column and Boom

  • Square type guide rail;
  • The manned platform can travel with boom, suitable for upper work;
  • Column and boom adopt high quality steel structure with good rigidity. Both column and boom are rectangle structure made;
  • Boom is retracted by AC motor, frequency stepless speed regulation, thus ensuring steady speed and facilitating speed regulation, gear and pin rack transmission.






Product Detail

Product Tags

Specifications

Model ZR C&B 4x4-5×5 ZR C&B 6×6 ZR C&B 7×7 ZR C&B 8×8-12×12
Effective lifting range (mm) 4000-5000 6000 7000 8000-12000
Effective retracting range (mm) 4000-5000 6000 7000 8000-12000
Lifting speed (mm/min) 1000
Retracting speed (mm/min) 100-1000
Min. boom height (mm) 1290 (Traveling with rotation) 1210 (Fixed with rotation)
Max. permissible load of boom (Kg) 600 500
Column rotating angle (°) ±180°
Speed (rpm) 0.17rpm or Manual rotation
Trolley travelling speed (mm/min) 2000
Inner span of trolley rail (mm) 2500

 This machine can be customized based on user’s requirements.
