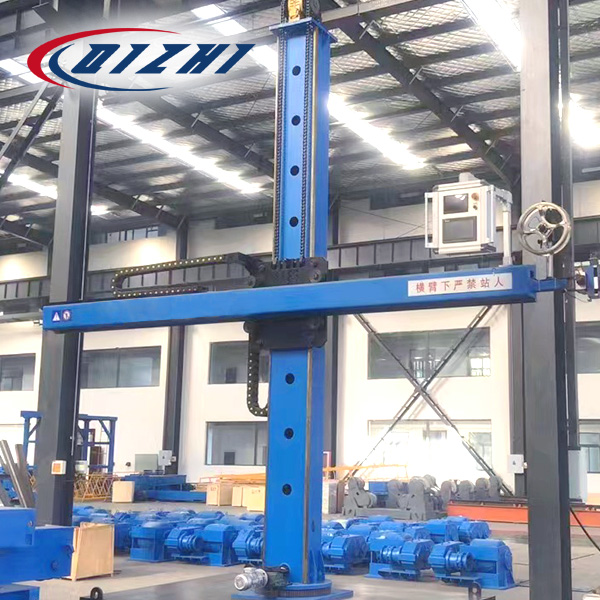

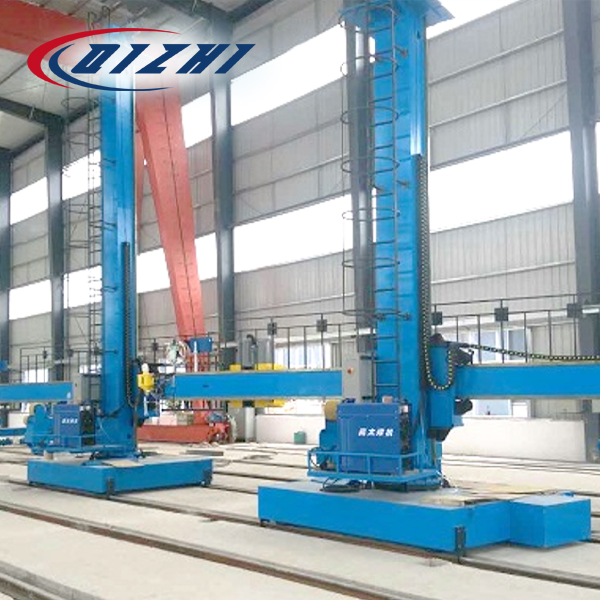

Automatic light duty column and boom welding machine

Short Description:

Light Duty Column & Boom

  •  V type guide rail;
  •  Convenient adjustment, smooth walking;
  • Imported control system, wide adjusting range, high precision;
  • The automatic locking device is adopted to protect the safety of equipment and operator.

Product Detail

Product Tags

Specifications

Parameters C&B C&B C&B C&B
1.5×1.5 2×2 3×3 4×4-4×5
Effective lifting range (mm) 1500 2000 3000 4000
Effective retracting range(mm) 1500 2000 3000 4000-5000
Lifting speed (mm/min) 1000
Retracting speed (mm/ min) 100-1000
Min. boom height (mm) 740 (Traveling with rotation)
690 (Fixed with rotation)
Max. permissible load of boom front end (kg) 120
Column rotation Manual revolve then locked by screw
Carriage travelling speed (mm/min) Manual push then locked by screw
Inner span of carriage rail (mm) 1000-2000

This machine can be customized based on user's requirements.
