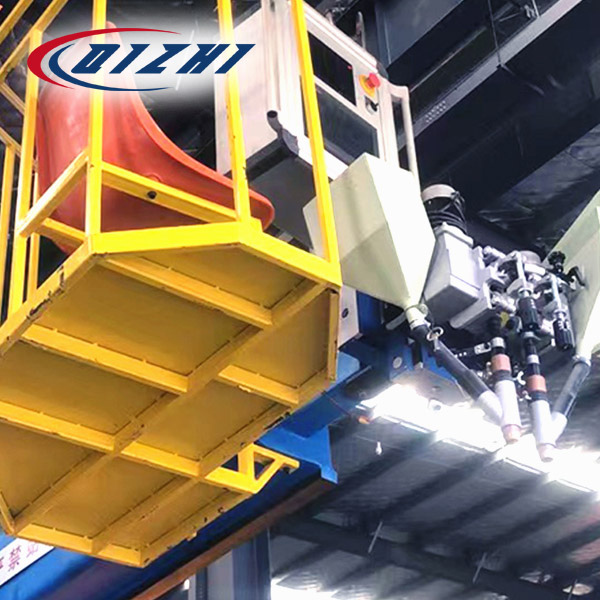

Automatic heavy duty column and boom welding machine

Short Description:

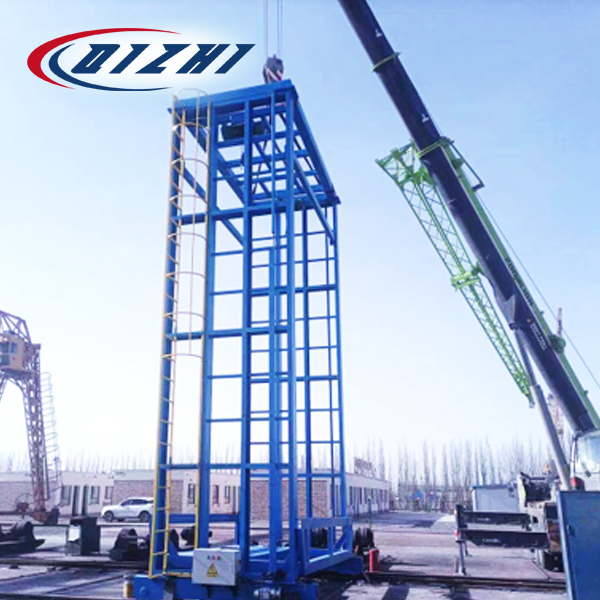

Heavy Duty Column & Boom

  • Square type guide rail;
  • High load capacity, good stability, very small down-deflection;
  • Equipped with shifting fork by holding the column to prevent slide and boom from falling.

Product Detail

Product Tags

Specifications

Parameters HDC&B HDC&B HDC&B HDC&B HDC&B
4x4 5×5 6×6 7×7-8×8 9x9-12×12
Effective lifting range (mm) 4000 5000 6000 7000-8000 9000-12000
Effective retracting range (mm) 4000 5000 6000 7000-8000 9000-12000
Lifting speed (mm/min) 1000
Retracting speed 100-1000
 (mm/ min)
Min. boom height (mm) 1100 (Traveling with rotation) 1118 (Traveling with rotation)
 950 (Fixed with rotation) 1170 (Fixed with rotation)
Max. permissible load of boom front end (kg) 200 300
Column rotation Angle: ±180°, Speed:0.36rpm or customized
Carriage travelling speed (mm/min) 2000 2000
Inner span of carriage rail (mm) 2000 2200 2500

This machine can be customized based on user’s requirements.
