Automatic finned tube production line

Short Description:

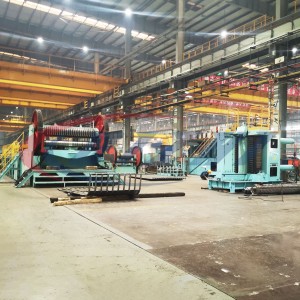

QIZHI provides a complete production line for finned tube production. It consists of tape uncoiler, tape welding device, tape storage machine, tape opening machine, tube rust removing machine, automatic tube feeding device, steel tube supporter, steel tube frame, fin forming device, plant body, fin tube automatic supporting device, fin tube forming power trolley, automatic feeding device for finned tubes, fin finish frame.

Production line is PLC control and can achieve continuous production.

Such production line has been installed in Ukraine, Russia, China, etc.


Product Detail

Product Tags

Specifications

Suitable for tube dia. 25mm-115mm
Suitable for tube thickness range: 2-15mm
Processing length: 3-25m
Tube material: carbon steel, chromium molybdenum alloy steel (t11, t12, t22, t23, t91, t92), stainless steel
Fin plate thickness range: 0.8-3mm
Fin width: 10-35mm
Fin pitch: 3-25mm, can be adjusted
Fin plate material: carbon steel, low alloy steel, high alloy steel (11cr), stainless steel
Tooth height: 0-25 mm
Tooth width: 1-10 mm
Fin shape: spiral solid and tooth type
