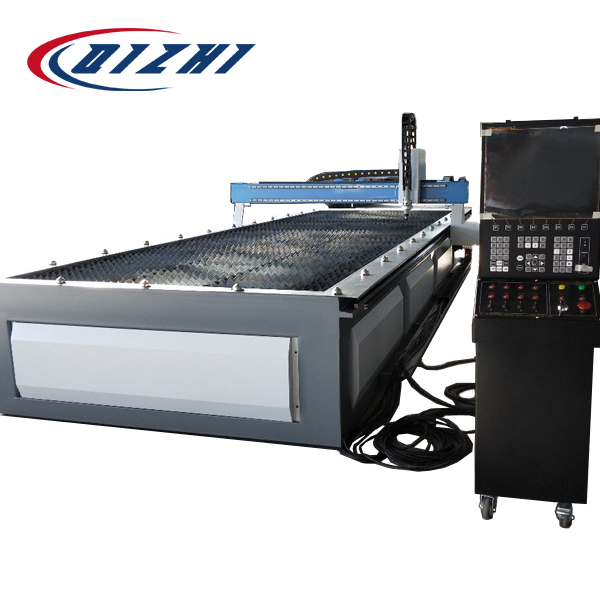

Automatic CNC flame/plasma cutting machine

Short Description:

Automatic CNC flame/plasma cutting machine is designed for heavy duty industry plate processing, it can be customized based user’s requirement.

The cross beam adopts wide reinforced box structure. The end beam adopts low center of gravity design with symmetrical structure and good stability. All structural welds are stress relieved to ensure overall accuracy and good dynamic balance.

The traveling track of the cart is made of 24kg-50kg high-strength heavy rails, and the top surface and both sides are finished by milling. Each length is 2 meters and can be infinitely lengthened. Imported planetary gear reducer, high-precision gear racks without gaps to ensure the stability of the machine. The main electrical components and parts are made of international brands.


Product Detail

Product Tags

Specifications

Model Universal Type Heavy duty Type Fine Type
Track gauge (mm) 3000 4000 5000 6000 7000 8000 9000 10000
Standard length(mm) 8000 12000 14000 14000 16000 16000 18000 18000
Effective cutting width(mm) 2200 3200 4200 5200 6200 7200 8200 9200
Effective cutting length(mm) 6000 10000 12000 12000 14000 14000 16000 16000
Cutting torch Standard design is 1 flame torch and 1 plasma torch, or 2 flame torches
Cutting thickness Depends on the power source, we can integrate China reliable power source or Hypertherm
Driven type Bilateral driven, except 3000mm machine
Control system Shanghai Jiaotong University/ Hypertherm
Nesting software FASTCAM
Cutting speed 0-6000mm/min
Travel speed 0-12000mm/min
Optional function Flame cutting: auto-ignition, automatic height-adjustment, powder spraying, bevel triple cutting torch, back-strip gun
Cutting mode Flame/ Plasma
Input power AC220V/ 380V ±10%
