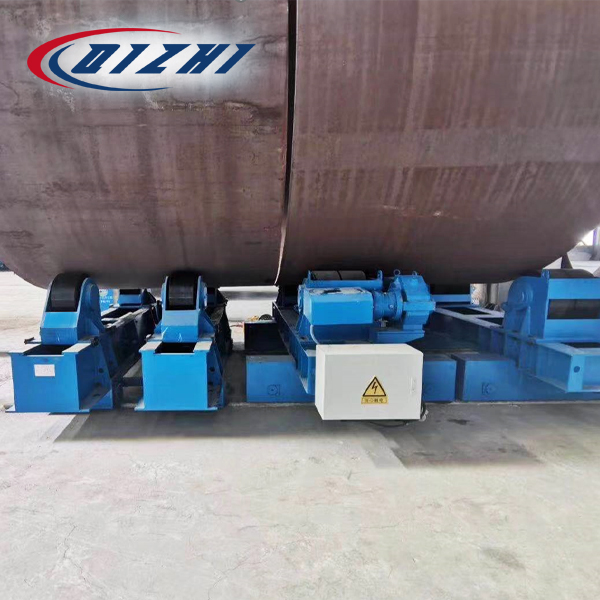

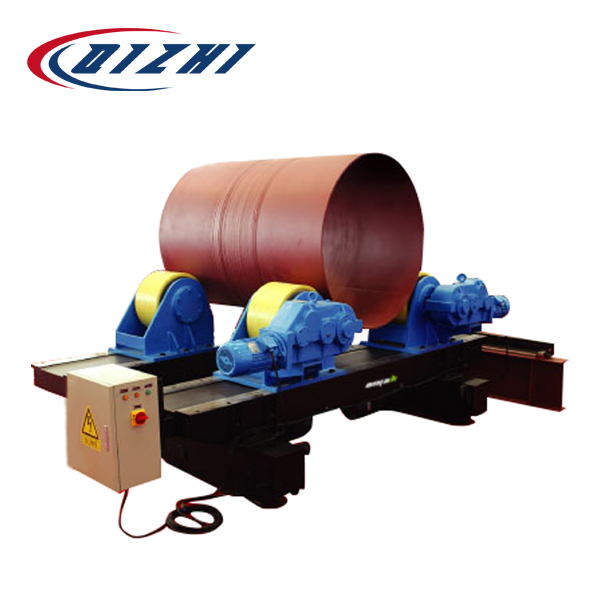

Adjustable welding rotator

Short Description:

QZ series adjustable welding rotator adopts bolt hole or lead screw to adjust the center distance of rollers as per the workpiece diameter. The wheels are new combination style-rubber or polyurethane coated steel wheels, with heavy load capacity, strong drive ability.

It is equipped with imported frequency converter, realizing stepless regulation with wide speed range, high precision, and high starting torque.

Send email to us Send email to us

Product Detail

Product Tags

Specifications

Model	Load	Roller Dia.	Roller Width	Workpiece Diameter
Model	(Ton)	(mm)	(mm)	(mm)
QKT-1	1	200	50	150-1500
(lead screw)	1	200	50	150-1500
QKT-3	3	200	100	200-2000
(lead screw)	3	200	100	200-2000
QKT-5	5	250	120	200-2500
(lead screw)	5	250	120	200-2500
QKT-5	5	250	120	200-2500
QKT-10	10	300	120	300-3000
QKT-20	20	300	200	300-3500
QKT-30	30	350	220	300-4000
QKT-40	40	425	220	300-4500
QKT-50	50	425	220	300-4500
QKT-60	60	450	220	600-5000
QKT-80	80	500	260	800-5500
QKT-100	100	550	260	1000-6000
QKT-120	120	550	260	1000-6500
QKT-150	150	550	300	1100-7000
QKT-200	200	600	400	1200-8000
